HR 7857

type ST · family 1VS · 38.1 kV maximum anode voltage · 110° deflection · 3 windings · 352 g

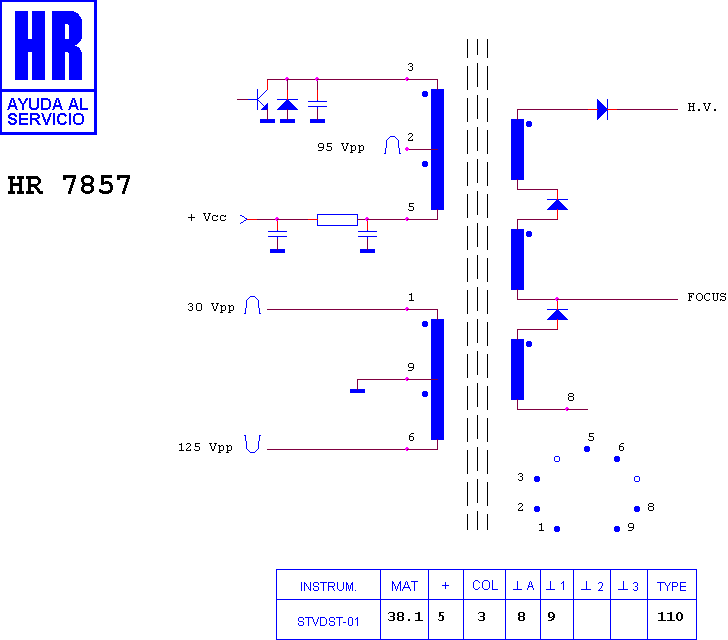

Schematic diagram for HR 7857
schematic

Manufacturer equivalents (7)

FAT3994 · TLF 14511 B · TLF 14511 F · TLF 14512 · TLF 14512 B · TLF 14512 F · TLF14511

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 80295 · HR 8534 · HR 80045 · HR 80053 · HR 8935 · HR 6383 · HR 8859 · HR 7236 · HR 7285 · HR 6267 · HR 8477 · HR 8310

Fitted to (8)

NATIONAL 513 · NATIONAL 673 · NATIONAL CN 513 · NATIONAL CN 673 · NATIONAL M 11 B · PANASONIC - MATSUSHITA CN 513 · PANASONIC - MATSUSHITA CN 673 · PANASONIC - MATSUSHITA M 11 B
