HR 7085

type ST · family 1AP2 · 24 kV maximum anode voltage · 110° deflection · 4 windings · 320 g

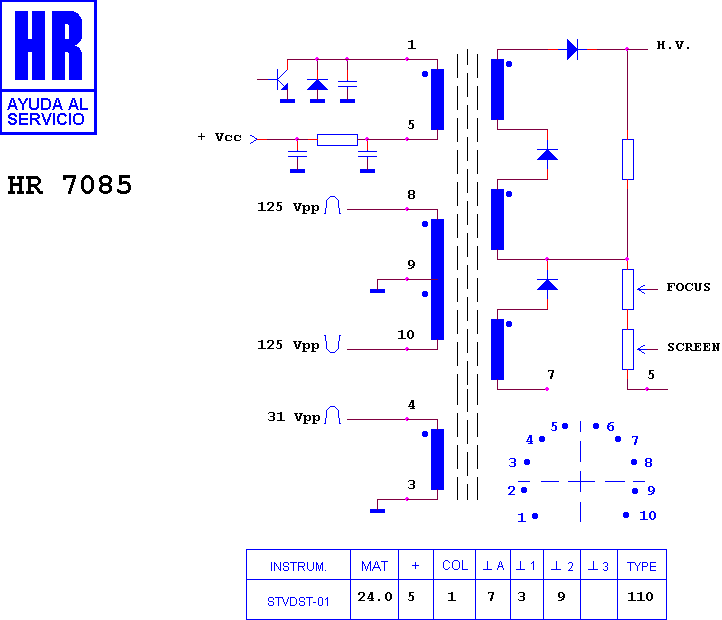

Schematic diagram for HR 7085
schematic

Manufacturer equivalents (7)

0282050 · 1105.0517 · 282050 · 282060 · ME/6051-00 · TDS 107 · TDS 107 B

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7079 · HR 7086 · HR 7236 · HR 6726 · HR 7285 · HR 8379 · HR 80120 · HR 80295 · HR 6383 · HR 7857 · HR 6356

Fitted to (10)

PIEMONTE ELETTRONICA TVC 110§ · WATT-COLOR 21" 110§ · WATT-COLOR 22" · WATT-COLOR 25" · WATT-COLOR 27" · WATT-COLOR 28" · WATT-RADIO CHASIS K 2 ORO 110§ · WATT-RADIO CHASIS PE 001 TXS · WATT-RADIO CHASIS PE 001F_ · WATT-RADIO CHASIS PE 001_
