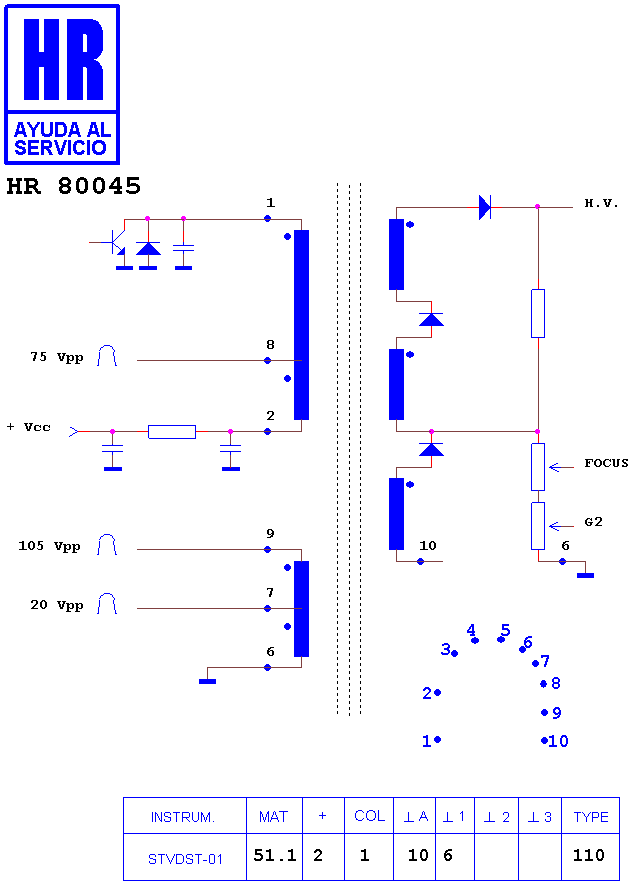

HR 80045

51.1 kV maximum anode voltage · 110° deflection · 3 windings · 410 g

Manufacturer equivalents (5)

DFBTCC115-131 A · DFBTCC125-131 A · DFBTCC125-161 A · FCC 125 · FE 5733-1

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8534 · HR 7740 · HR 7619 · HR 6383 · HR 7236 · HR 6360 · HR 7079 · HR 7285 · HR 80295 · HR 7857

Fitted to (8)

LENCO LTV 82828 · SANYO CPP 3050 · SANYO CPP 3250 · TEAC CTM 761 · TEAC CTM 761 S · TEAC CTM 761 ST · TEAC CTM 761 STN · TEAC CTM 7615
