HR 6208

type ST · family 1BP1 · 28.8 kV maximum anode voltage · 110° deflection · 3 windings · 389 g

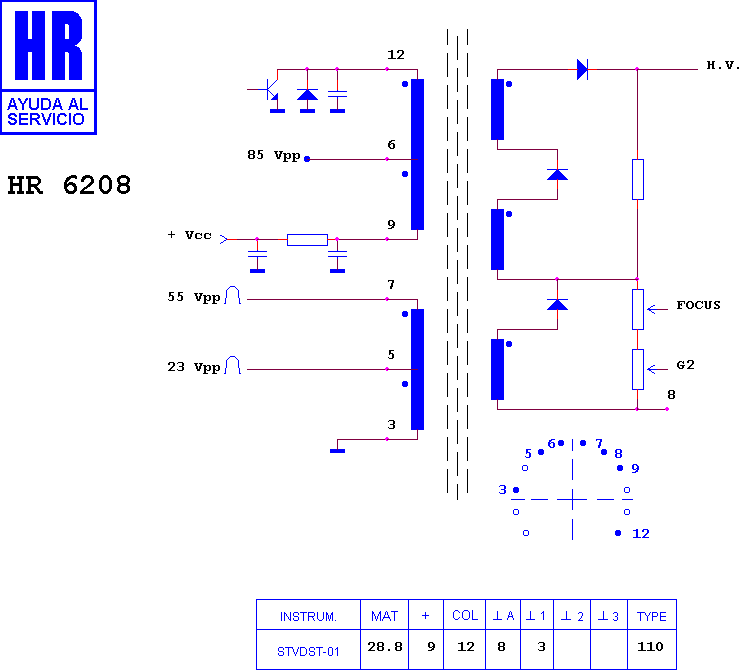

Schematic diagram for HR 6208
schematic

Manufacturer equivalents (2)

4-322-096 · GTA 5033/B

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8841 · HR 6383 · HR 80053 · HR 6200 · HR 6360 · HR 8310 · HR 6201

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
