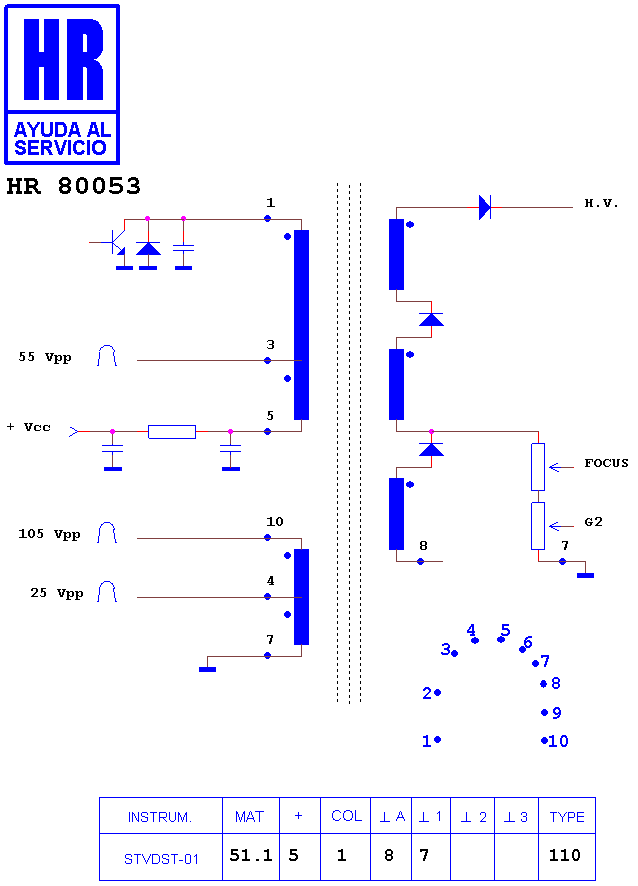

HR 80053

type ST · family 1YP · 51.1 kV maximum anode voltage · 110° deflection · 3 windings · 410 g

Manufacturer equivalents (3)

BSC 25-2036 S · BSC25-2636S · LTF 00 CPS 2019

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7359 · HR 8183 · HR 6225 · HR 6360 · HR 80113 · HR 7740 · HR 6208 · HR 7619 · HR 6383 · HR 8965 · HR 80286 · HR 8310

Fitted to (1)

SYMPHONIC WF 13
