HR 80286

43.8 kV maximum anode voltage · 110° deflection · 3 windings · 296 g

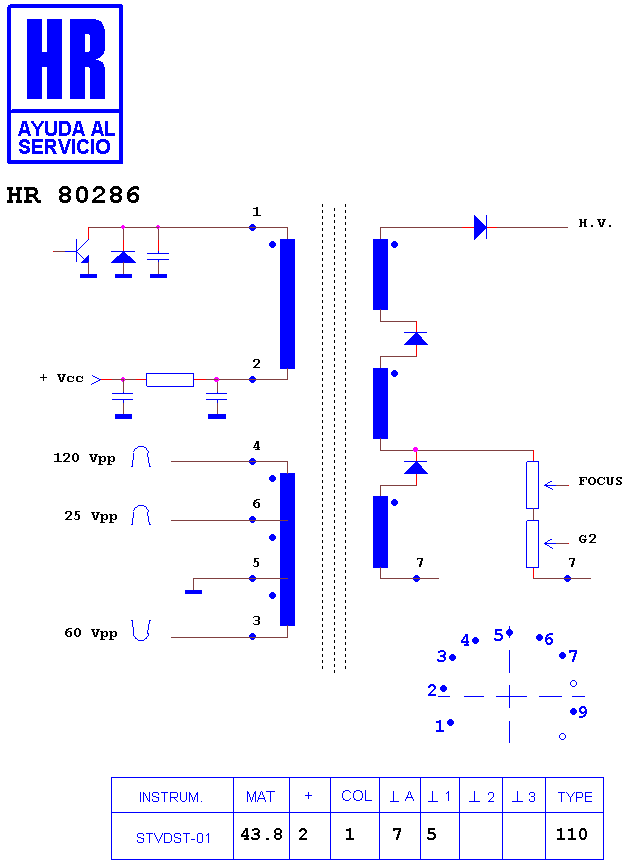

Schematic diagram for HR 80286
schematic (archived)

Manufacturer equivalents (13)

0094500744 · A-T9XX0052R · BSC 25-4803 T · BSC25-29/0052R · BSC25N3604DJ21D · BSC29-0105E · BSC29-0106C · BSC29-0136A · BSC30-1083E · RO766 · T9XX0040 · T9XX0052R · TR766

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 80113 · HR 8965 · HR 8184 · HR 7740 · HR 7619 · HR 80050 · HR 7516 · HR 8310 · HR 6649 · HR 6225 · HR 6509 · HR 8183

Fitted to (10)

AKIRA CT 21 LAS 1 · METZ 2500 T · METZ FD · METZ FD 2500 T · NIPPON 6148 · PHILIPS 29 PT 4663 · PHILIPS 29 PT 4663/53 R · SCHNEIDER STV 5551 D 2 · START 2116 · TELETECH CTV 2155 FS
