HR 6649

type ST · family 1BP1 · 32.7 kV maximum anode voltage · 110° deflection · 4 windings · 390 g

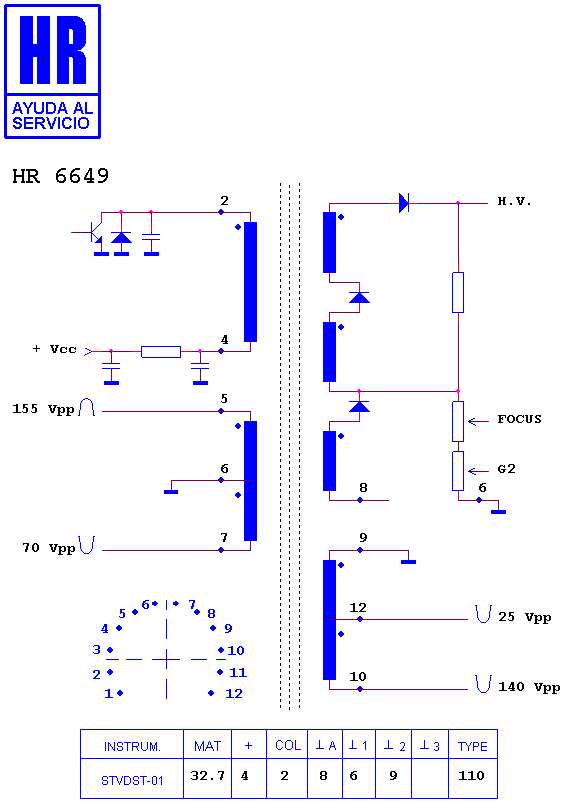

Schematic diagram for HR 6649
schematic

Manufacturer equivalents (5)

0061962 · 473201.15 · 473201.25 · 473201.B5 · 61692-3243

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 80050 · HR 8183 · HR 80286 · HR 8184 · HR 80113 · HR 8965 · HR 8943 · HR 80141 · HR 6161 · HR 7619 · HR 6671 · HR 6509

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
