HR 8943

51.1 kV maximum anode voltage · 110° deflection · 3 windings · 410 g

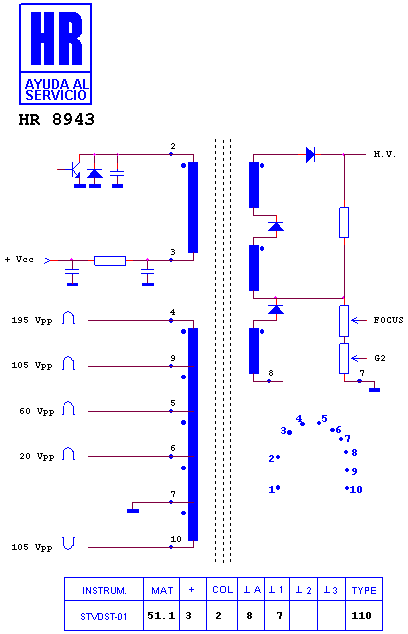

Schematic diagram for HR 8943
schematic (archived)

Manufacturer equivalents (8)

3210-94714-010 · 6174Z6012F · 6174Z6034J · 8227376 · FFA97017I · FFA97017L · FFA97017M · FTMPN51T6012F

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 5708 · HR 80113 · HR 8183 · HR 7431 · HR 7740 · HR 6649 · HR 6671 · HR 6509 · HR 7619 · HR 6589

Fitted to (10)

PHILCO PCS 2956 · PHILCO PCS 2956 N · PHILCO PCS 2956 P · PHILCO PCS 2958 · PHILCO PCS 2958 P · PHILCO PCS 2976 · PHILCO PCS 3320 · PHILCO PCS 3320 N · PHILCO PCS 3322 · PHILCO PCS 5629 N
