HR 6589

type ST · family 1BP1 · 19.8 kV maximum anode voltage · 110° deflection · 4 windings · 396 g

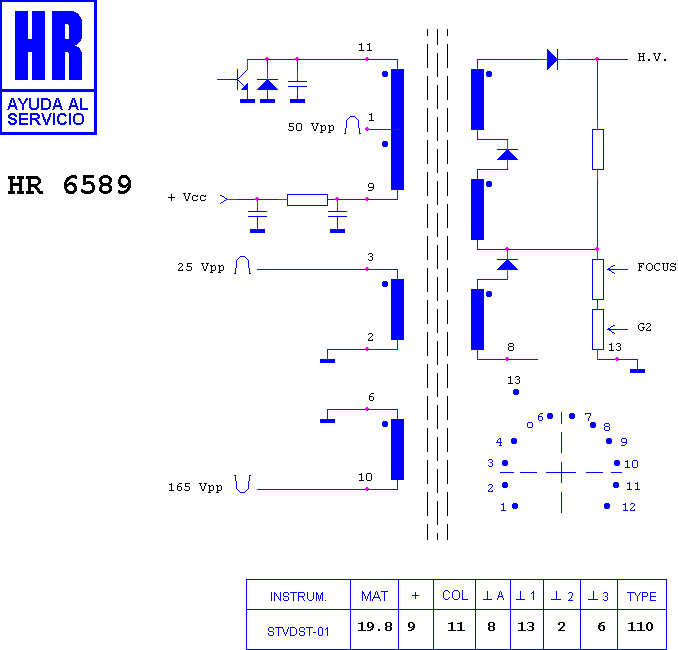

Schematic diagram for HR 6589
schematic

Manufacturer equivalents (3)

1182.0337 · FAT30448 · KN30448

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6511 · HR 6587 · HR 6568 · HR 6534 · HR 7624 · HR 7431 · HR 7631 · HR 7632 · HR 7101 · HR 8046 · HR 7436 · HR 6237

Search this part in the full database
