HR 7101

type ST · family 1AP · 20.1 kV maximum anode voltage · 110° deflection · 3 windings · 323 g

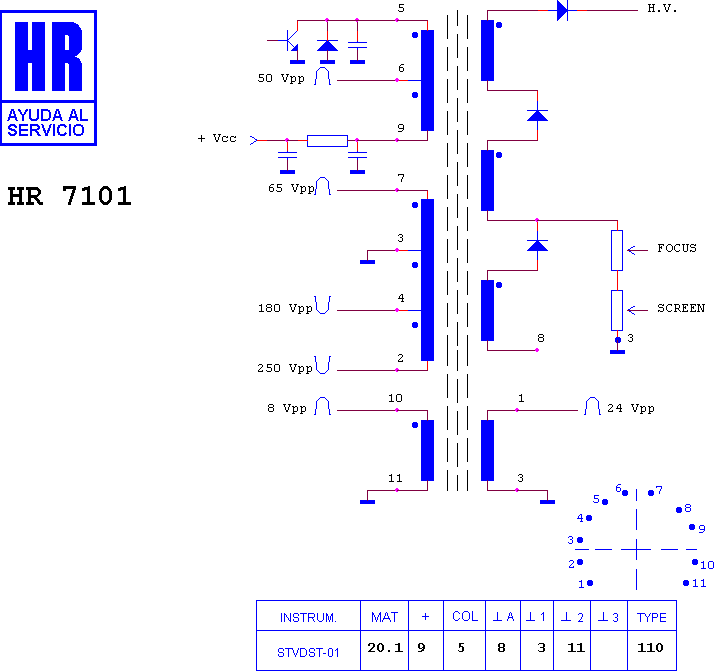

Schematic diagram for HR 7101
schematic

Manufacturer equivalents (1)

HR 7101

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7631 · HR 7632 · HR 6502 · HR 6511 · HR 6534 · HR 7436 · HR 6568 · HR 8046 · HR 7003 · HR 6248 · HR 8940 · HR 6010

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
