HR 6534

type ST · family 1BP1 · 30.3 kV maximum anode voltage · 110° deflection · 3 windings · 384 g

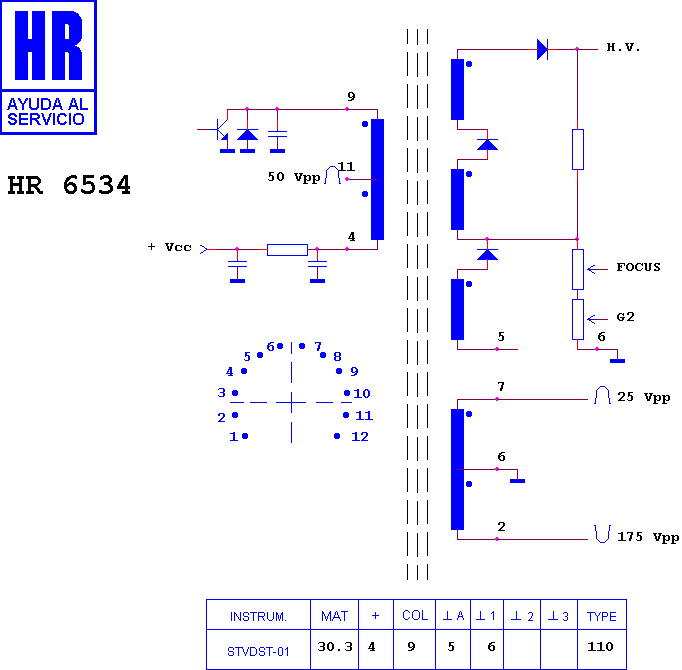

Schematic diagram for HR 6534
schematic

Manufacturer equivalents (1)

473200.11

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6568 · HR 8046 · HR 7624 · HR 46262 · HR 8299 · HR 80141 · HR 6500 · HR 6502 · HR 6511 · HR 7631 · HR 7632 · HR 7101

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
