HR 46262

51.1 kV maximum anode voltage · 110° deflection · 3 windings · 461 g

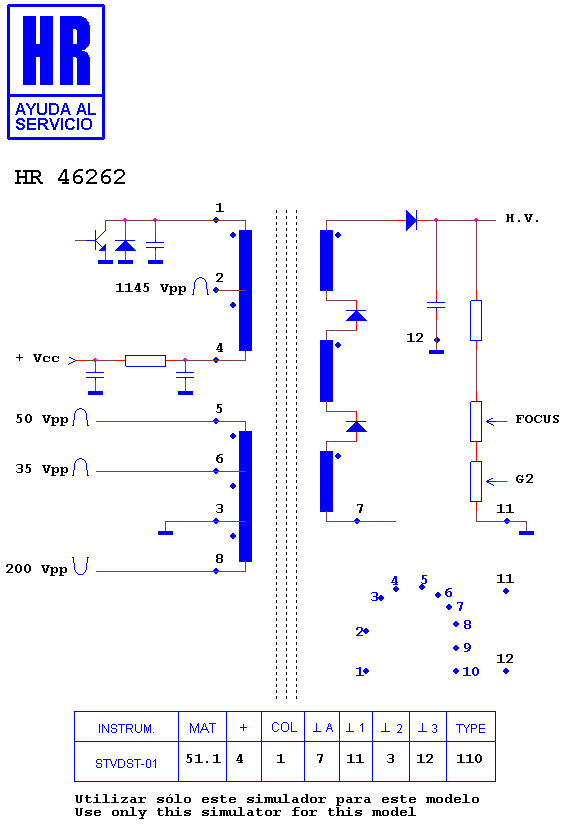

Schematic diagram for HR 46262
schematic (archived)

Manufacturer equivalents (3)

33402140050 · CF0634 · LCECF0634

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7363 · HR 8046 · HR 8299 · HR 7366 · HR 7689 · HR 6514 · HR 6314 · HR 7465 · HR 6315 · HR 6313 · HR 6534 · HR 6589

Fitted to (10)

ALN 2711 E · ALN 2711 E-T 14 C 6 · ALN MONITOR · ALN MONITOR · PNA 1650 · PNA CHASIS CH 1450 · PNA CHASIS CH 250 · PNA MONITOR · PNA MONITOR · PNA S 1600
