HR 6587

type ST · family 1GP · 30.9 kV maximum anode voltage · 110° deflection · 3 windings · 430 g

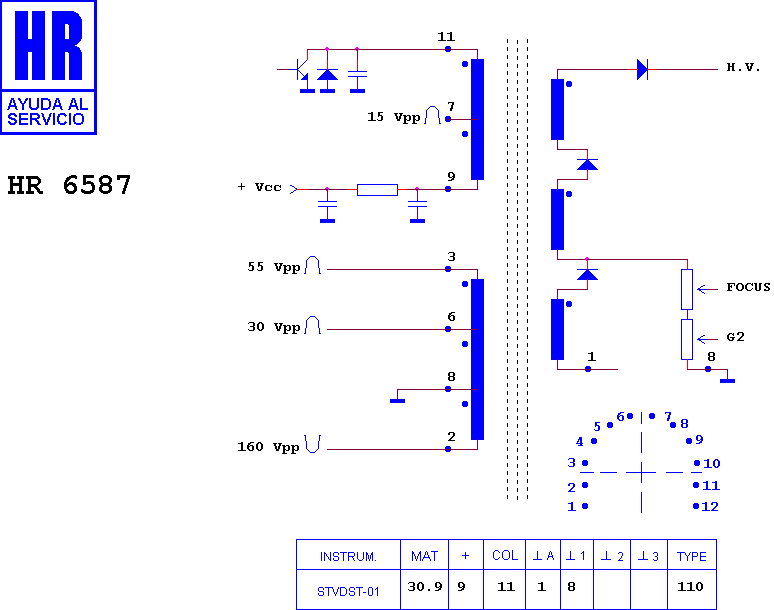

Schematic diagram for HR 6587
schematic

Manufacturer equivalents (5)

29201.031.61 · 29201.031.61 A · 29221.031.61 · 29221.031.61 A · 8 669 485 085

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6589 · HR 6509 · HR 7624 · HR 6000 · HR 46262 · HR 7516 · HR 7431 · HR 6671 · HR 6237

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (5)

GRUNDIG 737 · GRUNDIG CHASIS CUC 7350 · GRUNDIG GREENVILLE SP · GRUNDIG SP 737 · GRUNDIG SUPER COLOR SP
