HR 6671

type ST · family 1BP1 · 28.2 kV maximum anode voltage · 110° deflection · 4 windings · 380 g

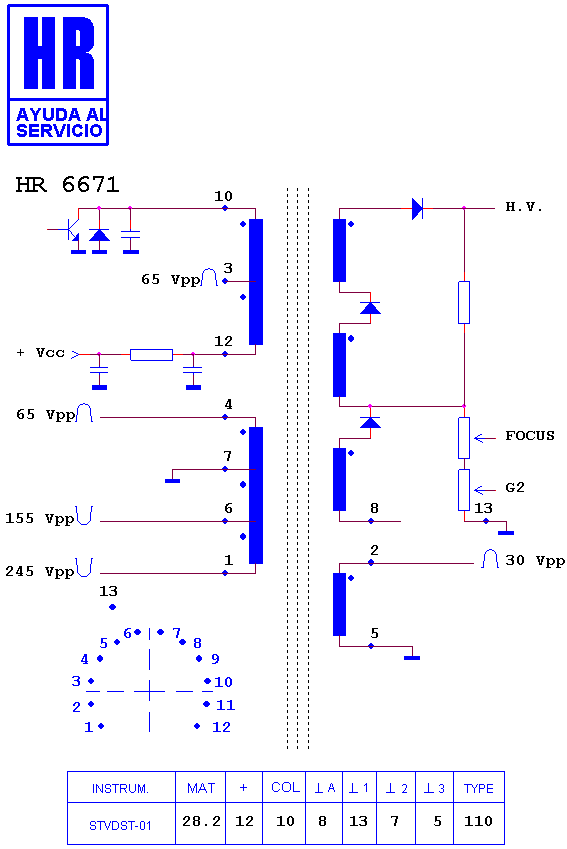

Schematic diagram for HR 6671
schematic

Manufacturer equivalents (5)

1182.1297 · 1182.1297A · 1182.1297B · 63.2099.000 · FAT30706

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6642 · HR 6587 · HR 6649 · HR 6000 · HR 80141 · HR 8943 · HR 80050 · HR 6161 · HR 7117 · HR 7431 · HR 7516 · HR 6509

Fitted to (14)

NECKERMANN 765/368 · NECKERMANN 782/953 · NECKERMANN CHASIS PC 100 · NECKERMANN PALLADIUM · PALLADIUM 765/368 · PALLADIUM 782/953 · PALLADIUM CHASIS PC 100 · PALLADIUM PALLADIUM · SELECO 28 SS 555 · SELECO A 28 SS 555 · SELECO CHASIS PC 100 · SELECO MATRIX · SELECO S 28 SS 555 · SELECO TESI

Search this part in the full database
