HR 7117

type ST · family 1AP1 · 28.5 kV maximum anode voltage · 110° deflection · 3 windings · 347 g

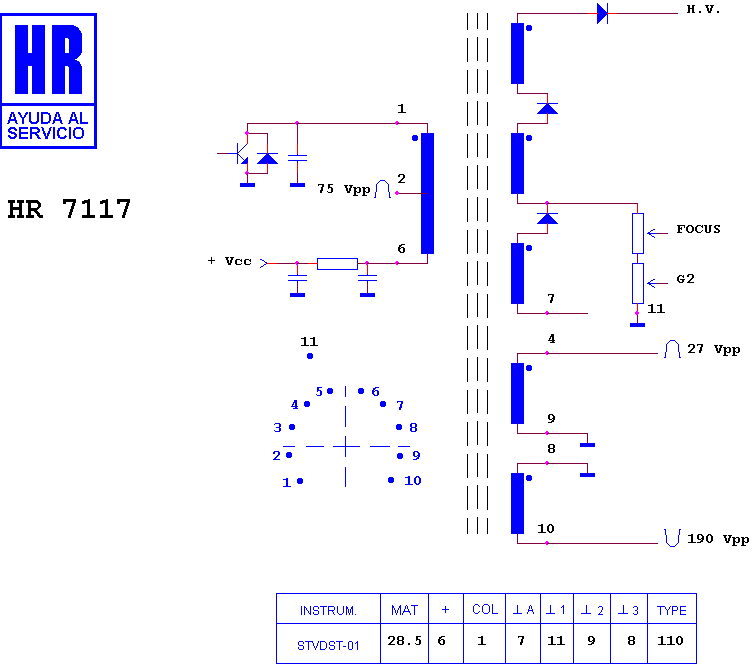

Schematic diagram for HR 7117
schematic

Manufacturer equivalents (2)

2436912 · KT 19.000

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6237 · HR 80141 · HR 6000 · HR 7091 · HR 7358 · HR 7369 · HR 6534 · HR 6568 · HR 8679 · HR 8874 · HR 8905 · HR 8413

Fitted to (1)

GRUNDIG CHASIS CUC 300
