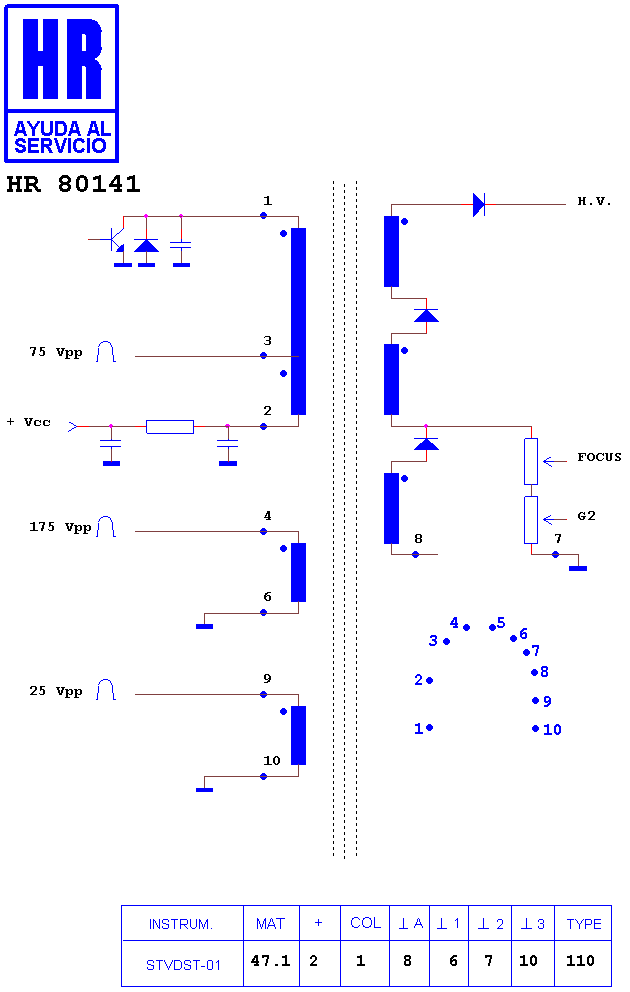

HR 80141

type ST · family 1YP · 47.1 kV maximum anode voltage · 110° deflection · 4 windings · 410 g

Manufacturer equivalents (1)

KFT 4 AA 448 F

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8759 · HR 8577 · HR 7358 · HR 6237 · HR 7369 · HR 8497 · HR 7091 · HR 6161 · HR 6671 · HR 6568 · HR 6649 · HR 6589

Fitted to (1)

PANASONIC - MATSUSHITA 29 TC KL 03
