HR 7358

type ST · family 1AP2 · 29.7 kV maximum anode voltage · 110° deflection · 4 windings · 322 g

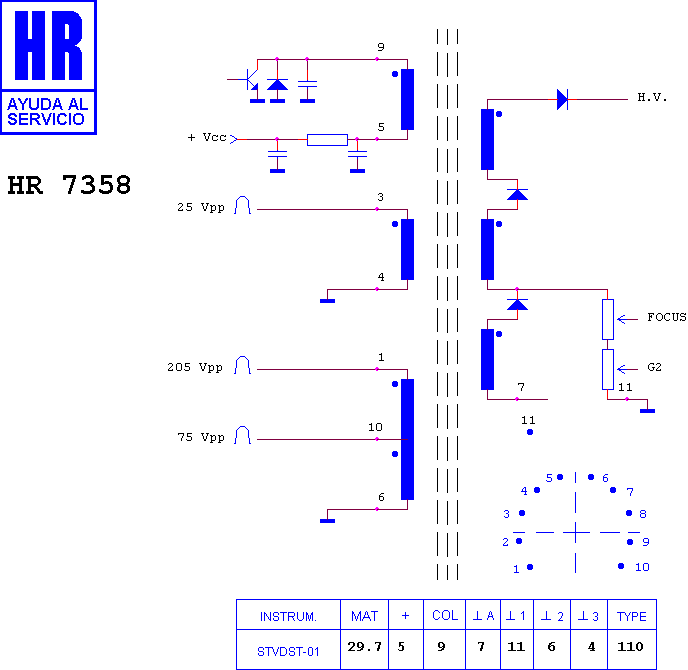

Schematic diagram for HR 7358
schematic

Manufacturer equivalents (5)

45150518 · 8871 89 84 · FCV 2012 B 10 · FCV 2012 E 10 · FVC 2012 E 10

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7091 · HR 8923 · HR 6237 · HR 7381 · HR 7382 · HR 7369 · HR 8004 · HR 80041 · HR 8940 · HR 6511 · HR 80141 · HR 6000
