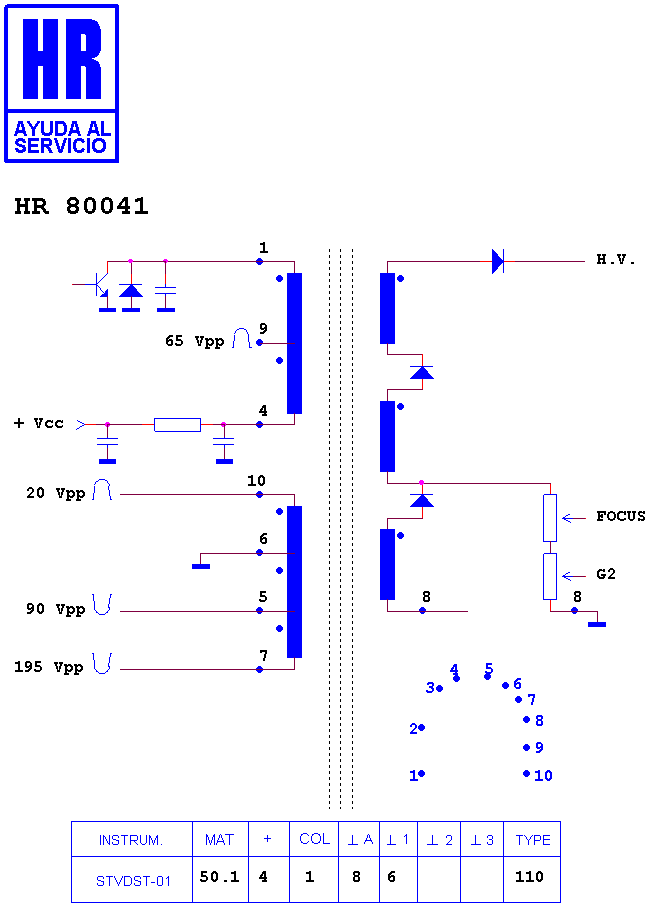

HR 80041

type ST · family 1YP · 50.1 kV maximum anode voltage · 110° deflection · 3 windings · 410 g

Manufacturer equivalents (1)

JF 0501-19172

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6028 · HR 8940 · HR 8287 · HR 7381 · HR 7382 · HR 7003 · HR 6248 · HR 6010 · HR 7436 · HR 6503 · HR 7091 · HR 8497

Fitted to (1)

EMERSON EM 0021 PP
