HR 8940

51.1 kV maximum anode voltage · 110° deflection · 4 windings · 408 g

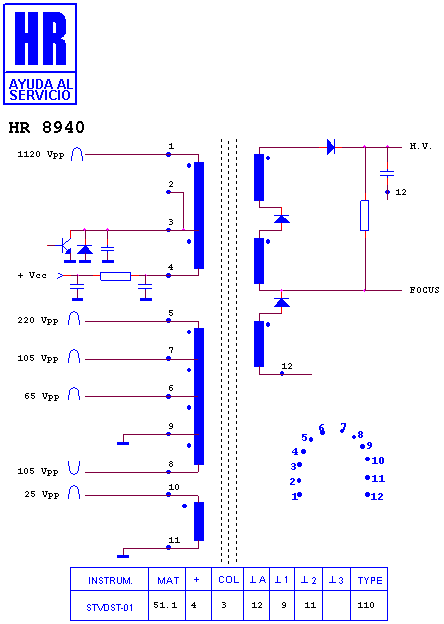

Schematic diagram for HR 8940
schematic (archived)

Manufacturer equivalents (5)

0100542 · 100542 · 1372.9017 · 1372.9017A · HR 8940

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8923 · HR 7003 · HR 7381 · HR 7382 · HR 8287 · HR 6248 · HR 6503 · HR 6169 · HR 6192 · HR 7279 · HR 6389 · HR 6511

Fitted to (1)

SCHNEIDER TV 17 XLF 100 HZ
