HR 6389

type ST · family 1BP1 · 16.2 kV maximum anode voltage · 110° deflection · 4 windings · 425 g

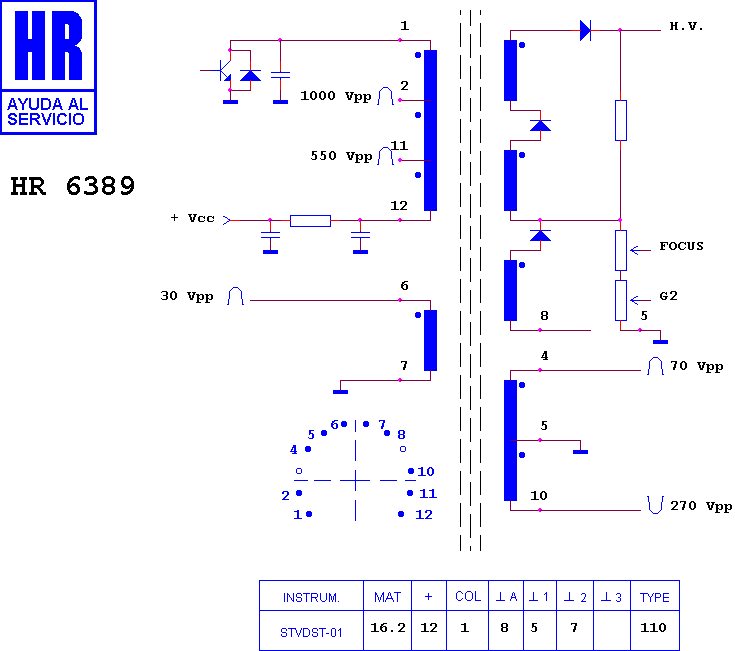

Schematic diagram for HR 6389
schematic

Manufacturer equivalents (8)

003331115 · 1182.5006 · 45171601 · D 399/37 · FAT30140 · ME/6481-00 · RO 102 · TR 102

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6465 · HR 8940 · HR 6514 · HR 6503 · HR 8287 · HR 6507 · HR 7381 · HR 7382 · HR 7279 · HR 6031 · HR 6192 · HR 6169

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
