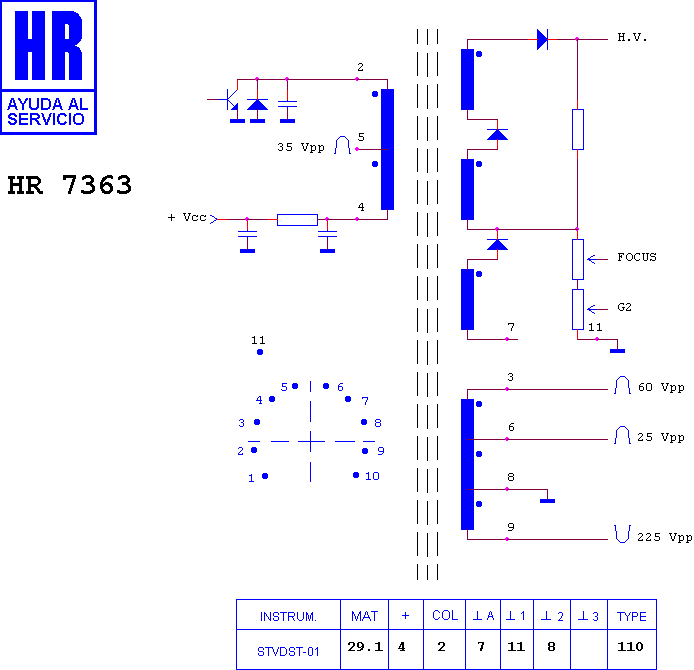

HR 7363

type ST · family 1AP1 · 29.1 kV maximum anode voltage · 110° deflection · 3 windings · 322 g

Manufacturer equivalents (2)

32054062 · 33000230

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7366 · HR 6568 · HR 46262 · HR 6511 · HR 6000 · HR 8658 · HR 7631 · HR 7632 · HR 6514 · HR 6500 · HR 6502 · HR 6507
