HR 6568

type ST · family 1BP1 · 32.4 kV maximum anode voltage · 110° deflection · 3 windings · 380 g

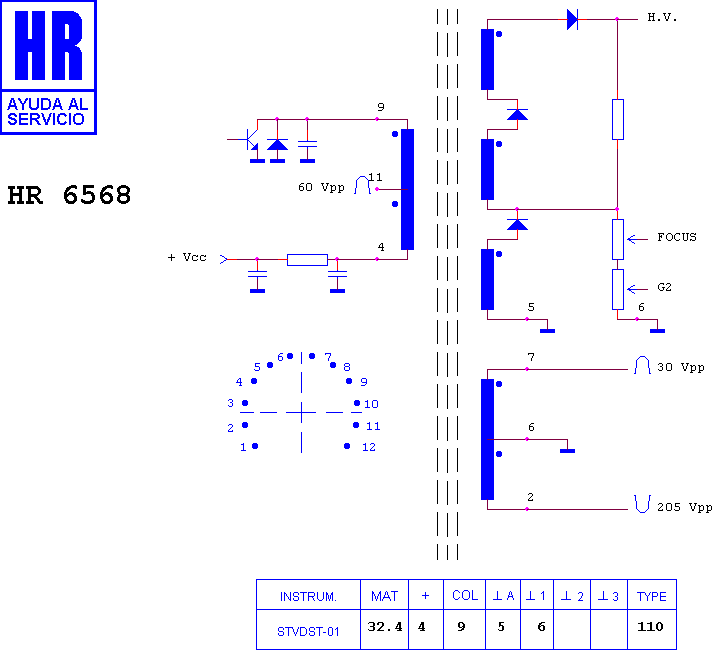

Schematic diagram for HR 6568
schematic

Manufacturer equivalents (1)

473201.88

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6534 · HR 8046 · HR 8940 · HR 8287 · HR 46262 · HR 6000 · HR 80141 · HR 6589 · HR 7366 · HR 6511 · HR 6500 · HR 6502

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (1)

SAGEM STV 2840-31
