HR 6507

type ST · family 1BS2 · 24.6 kV maximum anode voltage · 110° deflection · 3 windings · 368 g

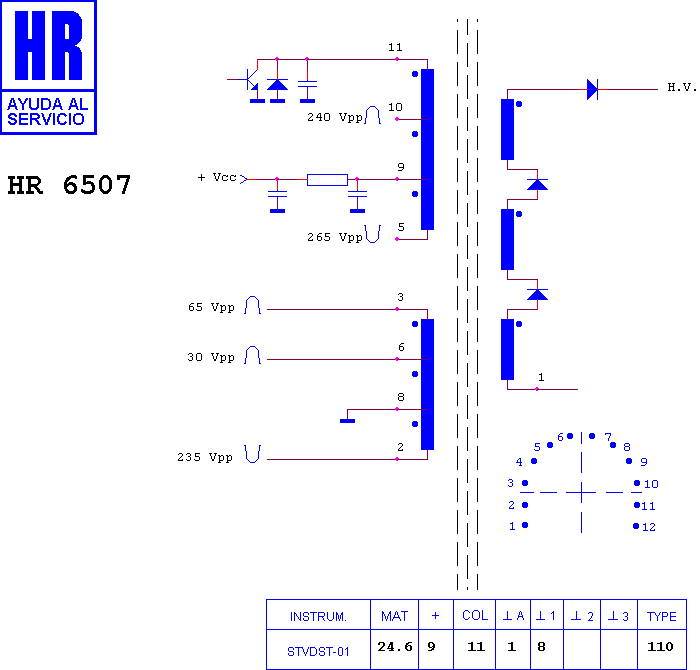

Schematic diagram for HR 6507
schematic

Manufacturer equivalents (5)

29201.029.03 · 29221.029.03 · 29221.029.0300 · M29201.029.03 · ME/6399-00

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6511 · HR 6514 · HR 6503 · HR 6500 · HR 6502 · HR 7632 · HR 7003 · HR 6248 · HR 8940 · HR 6568 · HR 6031 · HR 7363

Fitted to (12)

GRUNDIG 82-675 TOP · GRUNDIG 82-675/9 PIPTOP · GRUNDIG 82-675/9 TOP · GRUNDIG 8276/9 TOP · GRUNDIG CHASIS CUC 6880 · GRUNDIG ST 82-675 TOP · GRUNDIG ST 82-675/9 PIP TOP · GRUNDIG ST 82-675/9 TOP · GRUNDIG ST 8276/9 TOP · GRUNDIG SUPER COLOR ST · MINERVA CHASIS CUC 6880 · MINERVA ST 8276/9 TOP
