HR 6031

type ST · family 1BP1 · 25.2 kV maximum anode voltage · 110° deflection · 2 windings · 348 g

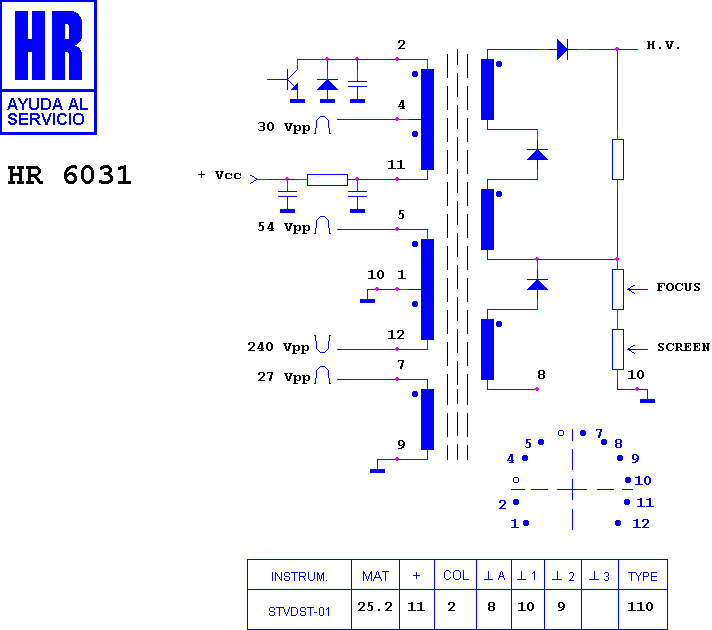

Schematic diagram for HR 6031
schematic

Manufacturer equivalents (12)

094-01017/0.2 · 094-01018/1.9 · 094-01018/2.7 · 37033.00 · 37033.01 · 37033.02 · 37333.00 · 37333.01 · 37333.02 · 94-01017/0.2 · 94-01018/1.9 · 956

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8604 · HR 6465 · HR 6514 · HR 7465 · HR 8311 · HR 7632 · HR 6248 · HR 8832 · HR 7003 · HR 7363 · HR 7625 · HR 6244

Fitted to (6)

FISHER 37033 · FISHER 37333 · FISHER FTM 456 S MD · FISHER FTS 466 S MD · SANYO CTP 7263 22" · SANYO CTP 8263 26"
