HR 8497

type ST · family 1XP1 · 25.5 kV maximum anode voltage · 110° deflection · 3 windings · 296 g

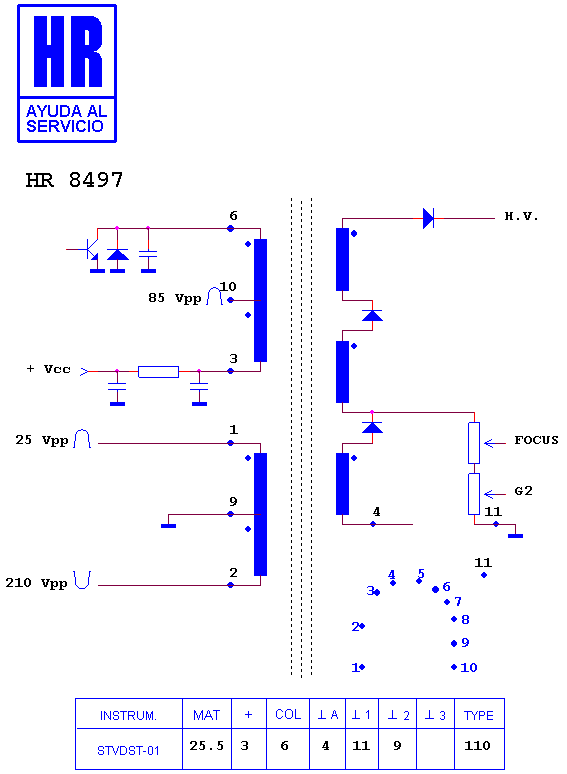

Schematic diagram for HR 8497
schematic

Manufacturer equivalents (3)

101-214009-03 · 101-214009-03 A · SP 113

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7091 · HR 8923 · HR 7358 · HR 7369 · HR 7117 · HR 80141 · HR 6237 · HR 8577 · HR 7381 · HR 7382 · HR 6000 · HR 8474

Search this part in the full database
