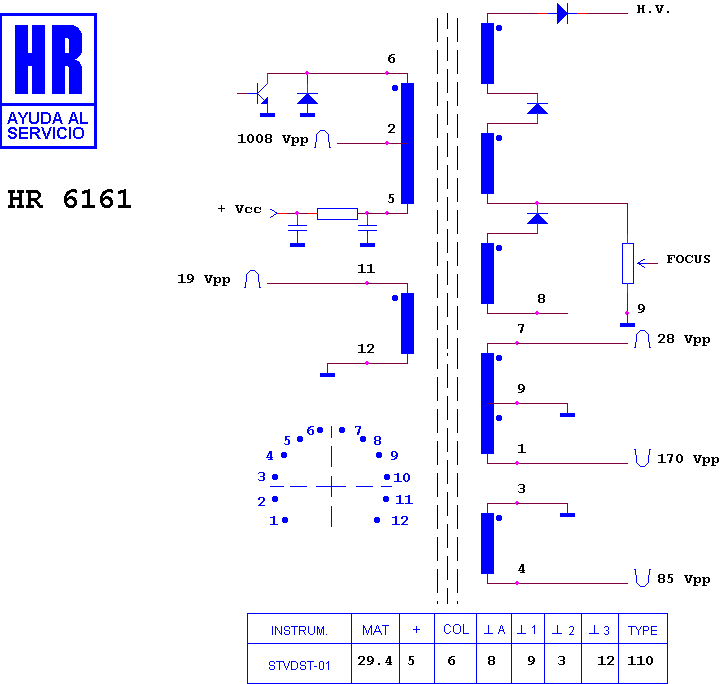

HR 6161

type ST · family 1BP1 · 29.4 kV maximum anode voltage · 110° deflection · 4 windings · 425 g

Manufacturer equivalents (2)

79 A 302-1 · SP 155

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6509 · HR 8577 · HR 7431 · HR 8759 · HR 8184 · HR 80141 · HR 80050 · HR 7624 · HR 8874 · HR 6000 · HR 6671 · HR 8237

Accessories (1)

Parts the catalogue lists alongside this one. They are separate items, not part of the transformer.

• HR 16525 — Screen (G2) control

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
