HR 8184

type ST · family 1YP · 41 kV maximum anode voltage · 110° deflection · 3 windings · 410 g

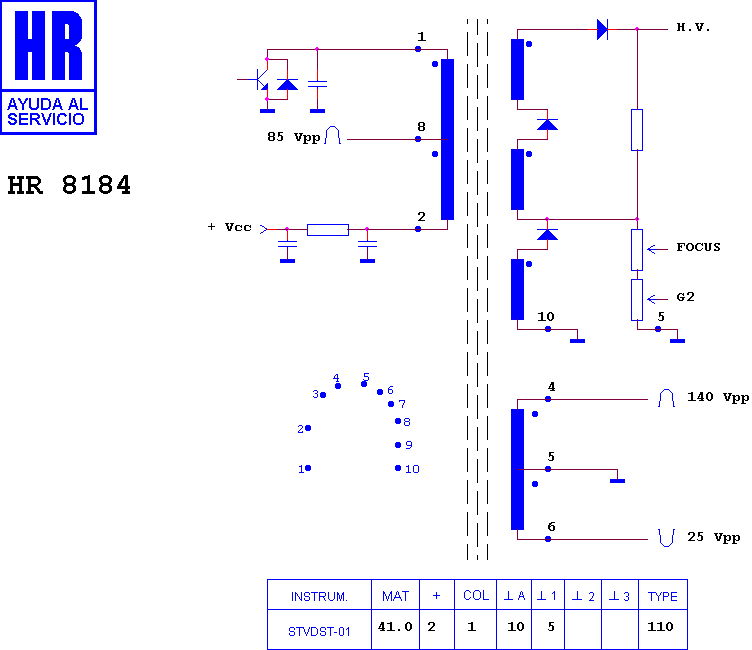

Schematic diagram for HR 8184
schematic

Manufacturer equivalents (4)

142 17003 · 4802 142 17003 · 4822 142 17003 · FCC 096

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8534 · HR 80286 · HR 7619 · HR 8965 · HR 6580 · HR 80050 · HR 6649 · HR 7733 · HR 6161 · HR 6419 · HR 8379 · HR 8487

Fitted to (3)

PHILIPS 26 CE 1991 · PHILIPS 26 CE 1991/75 · PHILIPS 26 CE 1991/75 R
