HR 7733

type ST · family 1XP1 · 18 kV maximum anode voltage · 110° deflection · 4 windings · 244 g

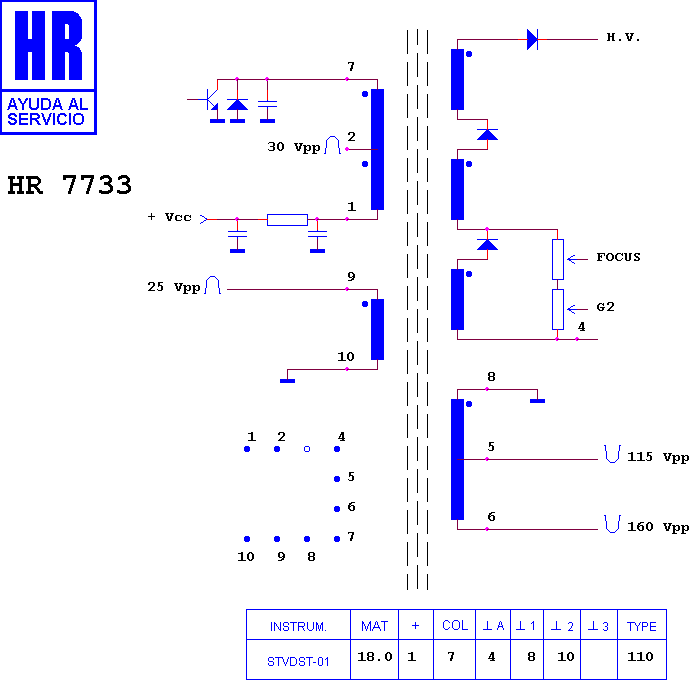

Schematic diagram for HR 7733
schematic

Manufacturer equivalents (1)

F 1180

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6643 · HR 8379 · HR 6419 · HR 6580 · HR 8184 · HR 8305 · HR 8859 · HR 8487 · HR 80050 · HR 7768 · HR 8237 · HR 8015

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
