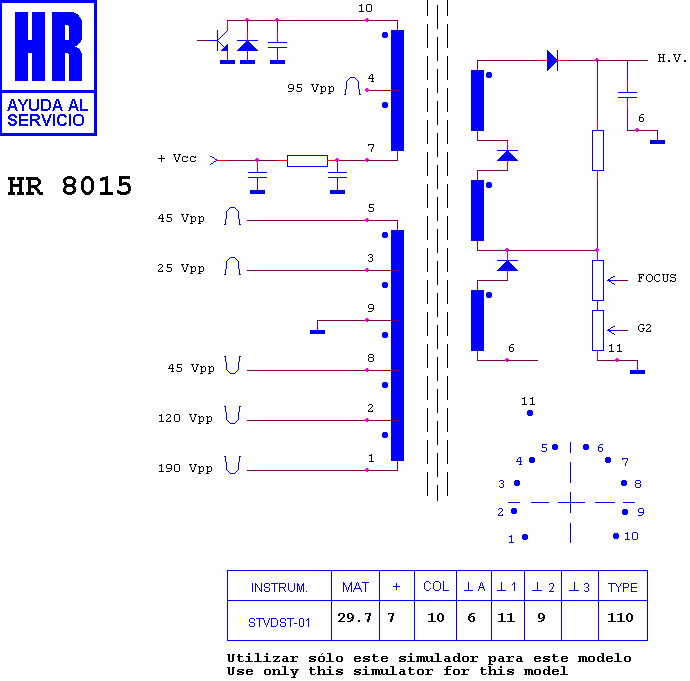

HR 8015

type ST · family 1ACP · 29.7 kV maximum anode voltage · 110° deflection · 3 windings · 434 g

Manufacturer equivalents (2)

528046091 · JT 154

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 80047 · HR 7288 · HR 8845 · HR 46175 · HR 8837 · HR 8026 · HR 6245 · HR 6515 · HR 8679 · HR 6643 · HR 7990 · HR 6604

Search this part in the full database
