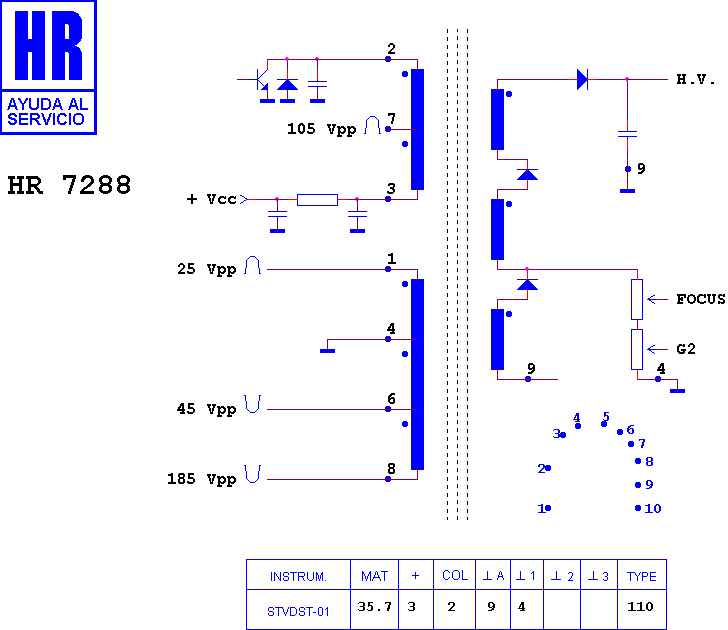

HR 7288

type ST · family 1VCP · 35.7 kV maximum anode voltage · 110° deflection · 3 windings · 389 g

Manufacturer equivalents (2)

TLF 15534 F · TR 7496

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8487 · HR 7990 · HR 6642 · HR 8901 · HR 8740 · HR 8015 · HR 6121 · HR 6069 · HR 6177 · HR 6277 · HR 7062 · HR 8770

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (7)

PANASONIC - MATSUSHITA CHASIS ALPHA 2 · PANASONIC - MATSUSHITA CHASIS TX 2 · PANASONIC - MATSUSHITA CHASIS TX 21 · PANASONIC - MATSUSHITA CHASIS TX 3 · PANASONIC - MATSUSHITA TX 2 · PANASONIC - MATSUSHITA TX 21 T 1 · PANASONIC - MATSUSHITA TX 3
