HR 8770

32.7 kV maximum anode voltage · 110° deflection · 4 windings · 400 g

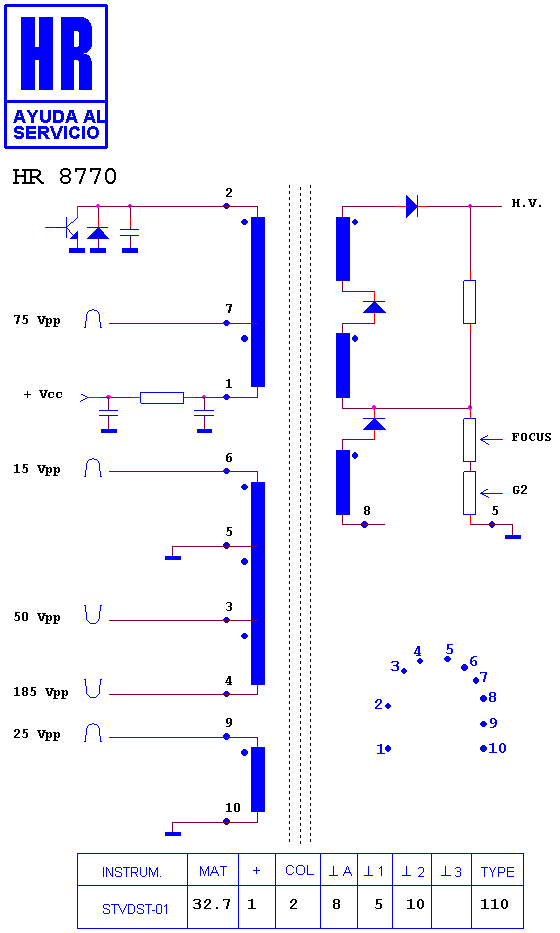

Schematic diagram for HR 8770
schematic (archived)

Manufacturer equivalents (33)

11030936351000 · 11030936351136 · 11030939391136 · 11040102331136 · 1352.0052 · 1352.0052A · 1362.5001 · 1362.5001A · 1362.5002 · 1362.5002A · 1372.0052 · 1372.0052A · 1372.0052B · 1372.0062 · 1372.0062A · 1372.0066 · 1372.00662 · 1372.00662 A · 1372.0066A · 4863211600 · 48632116000 · 48632120000 · 63.2116.000 · 700402207 · 700402218 · 700702207 · 8632116000 · 88700402207 · 88700402218 · 936351136 · FAT30800 · FAT30828 · HR 8770

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6681 · HR 6720 · HR 6554 · HR 6272 · HR 7990 · HR 6592 · HR 7180 · HR 7288 · HR 8916 · HR 7965 · HR 6604 · HR 6273

Fitted to (63)

BUSH-MURPHY-RANK 288 NSA · BUSH-MURPHY-RANK W 288 NSA · DUMONT CHASIS F 19 · DUMONT DT 6972 · DUMONT DT 6972 ST TXT · DUMONT DT 6974 · DUMONT DT 6974 A · DUMONT DT 6974 AST TXT · FORMENTI - ADMIRAL 574 ST · FORMENTI - ADMIRAL CHASIS F 16 · FORMENTI - ADMIRAL CHASIS F 19 · FORMENTI - ADMIRAL IS · FORMENTI - ADMIRAL IS 574 ST · FORMENTI - ADMIRAL W 6972 · GOODMANS 321 N 3 · GOODMANS CHASIS F 16 · GOODMANS CHASIS F 19 · GOODMANS W 280 NS · GOODMANS W 321 N 3 · GOODMANS W 321 NS · GOODMANS W 321 NSA · GOODMANS W 322 NS · INTERVISION 4073 NIC · NEUFUNK 4083 · NEUFUNK TVC 4083 · NRN SW 7273/2 · PROLINE FW 2800 · SELECO 574 ST · SELECO 74 · SELECO CHASIS F 19 · SELECO IS · SELECO IS 574 · SELECO IS 574 ST · SELECO ISS · SELECO ISS 74 · SELECO ISS 74 ST · SINGER 1354 · SINGER 28 WIRE · SINGER S · SINGER S 28 WIRE · SINGER SAL · WESTINGHOUSE W 6972 · WESTINGHOUSE W 6972 A · WESTINGHOUSE W 6972 R · WESTINGHOUSE W 6974 A · WESTINGHOUSE W 6974 R · WHITE-WESTINGHOUSE 40830 NICAM · WHITE-WESTINGHOUSE CHASIS F 16 · WHITE-WESTINGHOUSE CHASIS F 19 · WHITE-WESTINGHOUSE N 40830 NIC · WHITE-WESTINGHOUSE W 4073 MET SILVER · WHITE-WESTINGHOUSE W 40730 NICAM TXT · WHITE-WESTINGHOUSE W 40830 NIC · WHITE-WESTINGHOUSE W 4973 A ST TXT · WHITE-WESTINGHOUSE W 6872 · WHITE-WESTINGHOUSE W 6972 · WHITE-WESTINGHOUSE W 6973 · WHITE-WESTINGHOUSE W 6973 ST TXT · WHITE-WESTINGHOUSE W 6974 A · WHITE-WESTINGHOUSE WW 6972 · WORTEN SW 7273 II · WORTEN SW 7273/11 · WORTEN SW 7273/2
