HR 6295

type ST · family 1BP1 · 20.7 kV maximum anode voltage · 110° deflection · 4 windings · 425 g

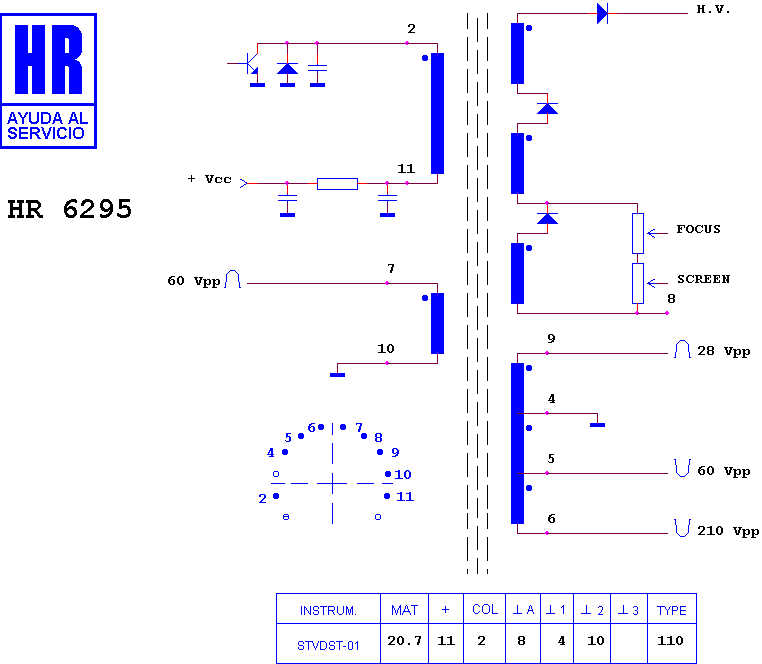

Schematic diagram for HR 6295
schematic

Manufacturer equivalents (7)

003331003 · D 397/37 · FAT30014 · KN30014 · ME/6370-00 · RO 116 · TR116

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8658 · HR 6315 · HR 7430 · HR 6545 · HR 6369 · HR 7993 · HR 6704 · HR 6532 · HR 6183 · HR 6591 · HR 6120 · HR 7195
