HR 7430

type ST · family 1XP1 · 27.6 kV maximum anode voltage · 110° deflection · 3 windings · 290 g

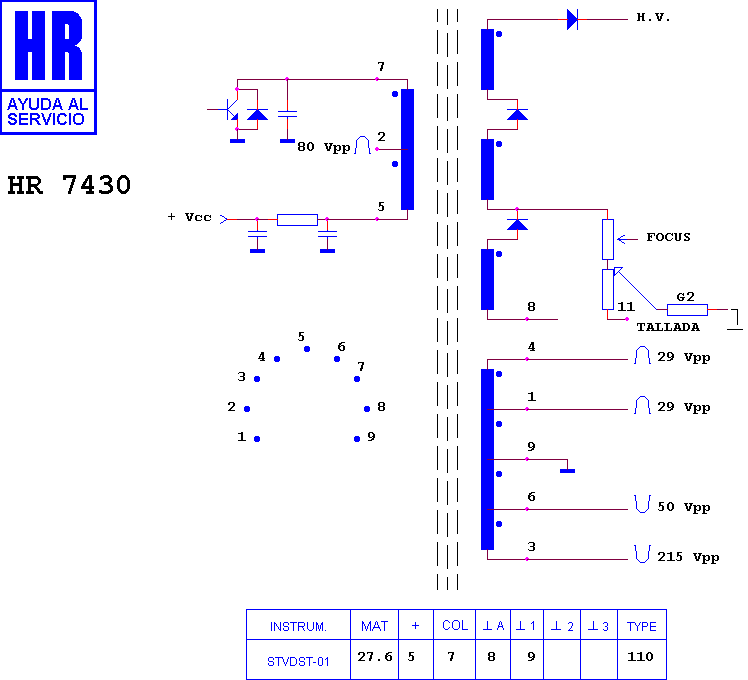

Schematic diagram for HR 7430
schematic

Manufacturer equivalents (2)

TLF 14634 · TLF 14634 F

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6532 · HR 6352 · HR 6120 · HR 6545 · HR 7993 · HR 6554 · HR 8851 · HR 8932 · HR 6681 · HR 6604 · HR 6556 · HR 8507

Fitted to (1)

PANASONIC - MATSUSHITA CT 3052
