HR 6315

type ST · family 1HS · 21 kV maximum anode voltage · 110° deflection · 4 windings · 510 g

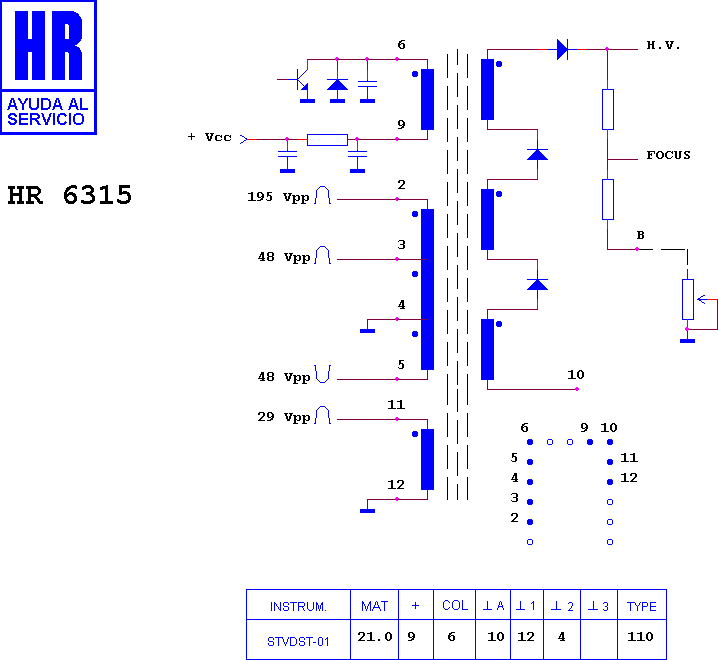

Schematic diagram for HR 6315
schematic

Manufacturer equivalents (7)

210315 · 8 627 000 845 · 8 667 210 315 · FAT210/315 · FAT3614 · KN3614 · ME/6063-00

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6314 · HR 6313 · HR 8658 · HR 6704 · HR 7689 · HR 6591 · HR 46262 · HR 7195 · HR 7250 · HR 6545 · HR 7875 · HR 6369

Fitted to (10)

BLAUPUNKT 210315 · BLAUPUNKT 7 662 120 · BLAUPUNKT 7 662 130 · BLAUPUNKT 8667 210 315 · BLAUPUNKT CHASIS FM 100.21 · BLAUPUNKT CHASIS FM 121 · BLAUPUNKT CORDOBA T 16 · BLAUPUNKT PALMA T 8 · QUELLE 011.919 · QUELLE FT 533
