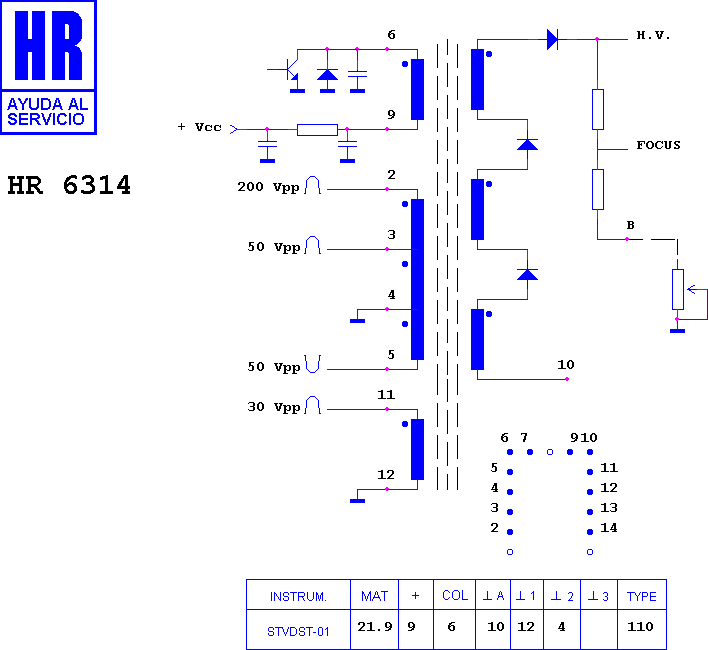

HR 6314

type ST · family 1HS · 21.9 kV maximum anode voltage · 110° deflection · 4 windings · 510 g

Manufacturer equivalents (5)

210314 · 8 667 210 314 · FAT 210/314 · FAT 3613 · ME/5405-00

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6315 · HR 6313 · HR 7322 · HR 7325 · HR 46262

Accessories (1)

Parts the catalogue lists alongside this one. They are separate items, not part of the transformer.

• HR 1660 — EHT anode lead

Fitted to (7)

BLAUPUNKT 210314 · BLAUPUNKT 7 615 107 · BLAUPUNKT 7 615 110 · BLAUPUNKT 7 661 820 · BLAUPUNKT 8667 210 314 · BLAUPUNKT CD 37-121 BT · BLAUPUNKT CD 37-121 M

Search this part in the full database
