HR 7325

type ST · family 1OS1 · 25.2 kV maximum anode voltage · 110° deflection · 6 windings · 297 g

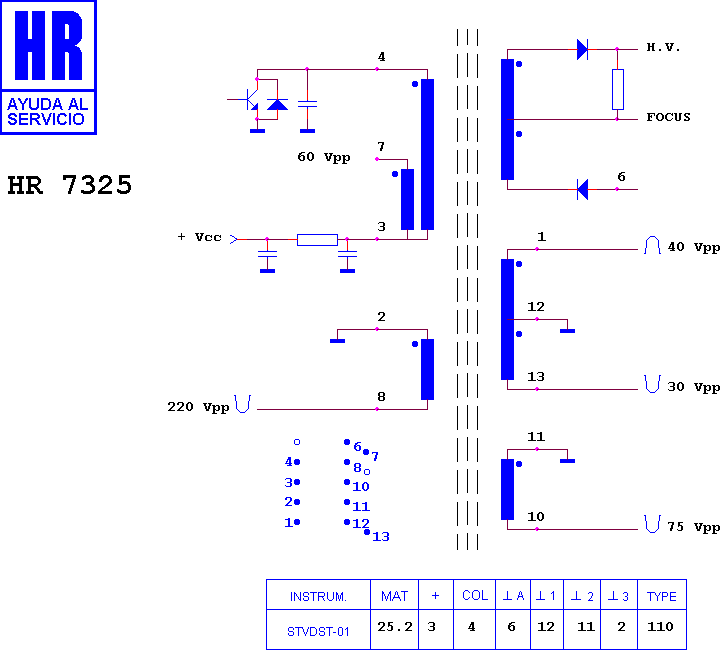

Schematic diagram for HR 7325
schematic

Manufacturer equivalents (13)

0-2223-074 · 003350101 · 2223074 · 473026.00 · AT 110/25/20 · FAT30073 · HR 7325 · KN30073 · KN35259N · ME/6446-00 · RO 088 · TR 425 · TR1018

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7322 · HR 7993 · HR 6120 · HR 6545 · HR 6352 · HR 6292 · HR 7057 · HR 7430 · HR 6532 · HR 6723 · HR 6592 · HR 6068

Fitted to (9)

VIDEOTON TS 4350 · VIDEOTON TS 4351 · VIDEOTON TS 4352 TXT - OSD · VIDEOTON TS 5355 · VIDEOTON TS 5356 · VIDEOTON TS 6354 · VIDEOTON TS 6355 · VIDEOTON TS 6357 · WALTHAM WT 770 T
