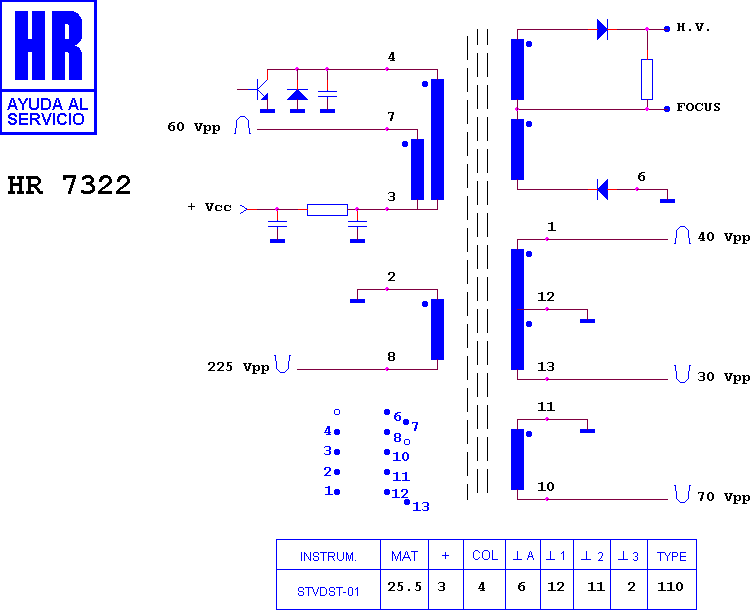

HR 7322

type ST · family 1OS1 · 25.5 kV maximum anode voltage · 110° deflection · 5 windings · 297 g

Manufacturer equivalents (12)

0-2223-075 · 003350103 · 2223075 · 473027.00 · AT 110/27/24 · FAT 30110 · HR 7322 · KN 30110 · ME/6467-00 · RO 090 · TR 1019 · TR 427

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7325 · HR 7195 · HR 6352 · HR 7057 · HR 6704 · HR 7993 · HR 6545 · HR 6120 · HR 6183 · HR 6592 · HR 7430 · HR 6295

Accessories (2)

Parts the catalogue lists alongside this one. They are separate items, not part of the transformer.

• HR 16502 — EHT anode lead
• HR 16529 — Focus control
