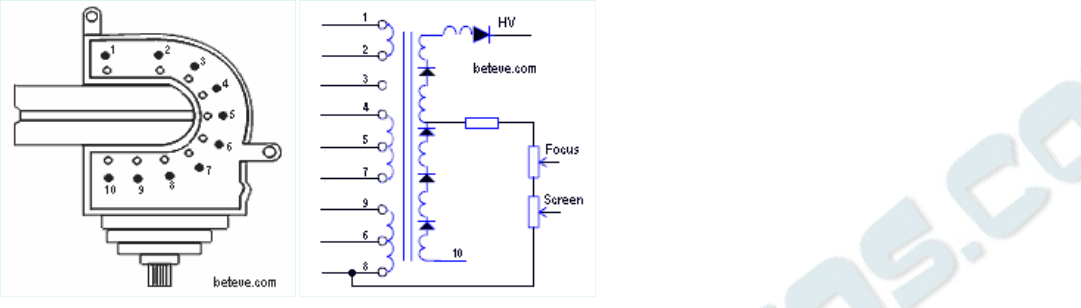

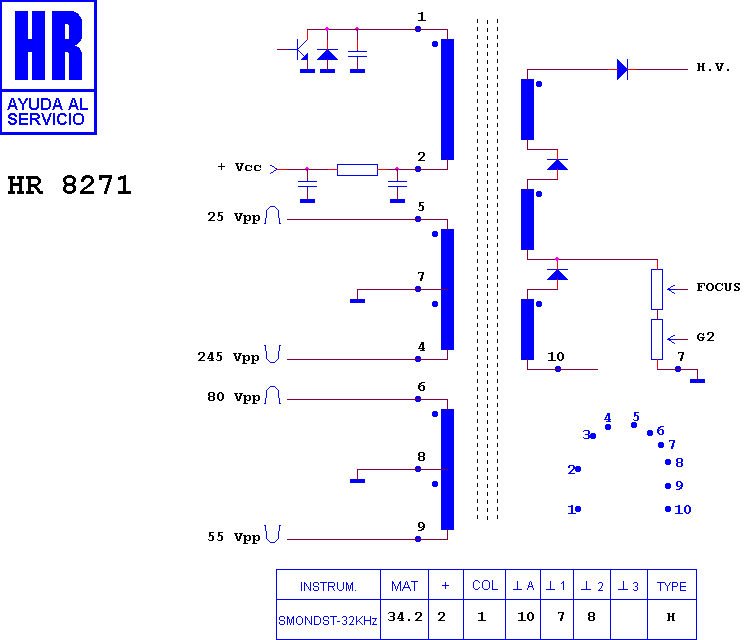

HR 8271

type SM · family 1YP · 34.2 kV maximum anode voltage · H° deflection · 4 windings · 410 g

Manufacturer equivalents (5)

TLF 4 G 503 F · TLF 46503 F · TLF15644F1 · TLF4G503 · TLF4N052

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7967 · HR 6295 · HR 7705 · HR 7764 · HR 8026

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (4)

PANASONIC - MATSUSHITA FX 36 · PANASONIC - MATSUSHITA TC 14 C 20 · PANASONIC - MATSUSHITA TC 14 C 6 · PANASONIC - MATSUSHITA TC 20 C 6
