HR 7705

type SM · family 1WP1 · 26.5 kV maximum anode voltage · H° deflection · 3 windings · 459 g

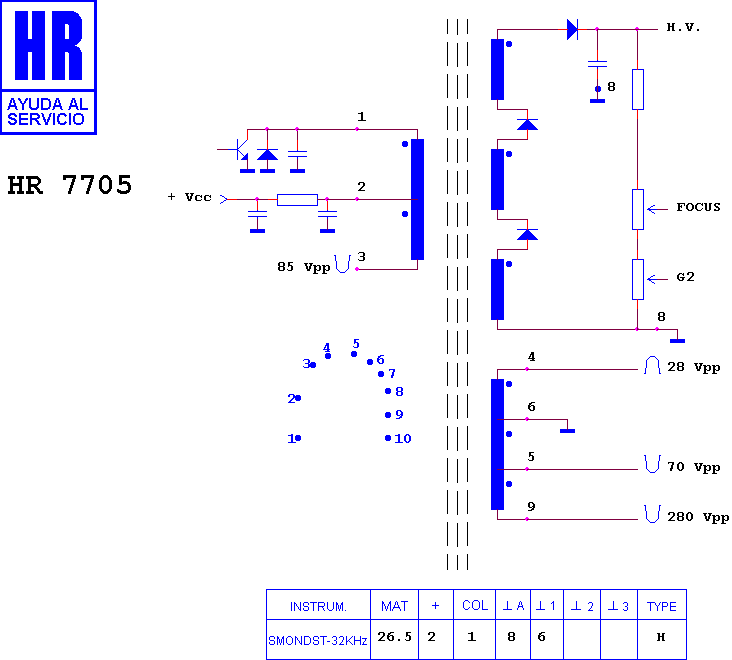

Schematic diagram for HR 7705
schematic

Manufacturer equivalents (2)

05 F 13423 A 1 · 5 F 13423 A

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8271

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
