HR 8487

39 kV maximum anode voltage · 110° deflection · 4 windings · 290 g

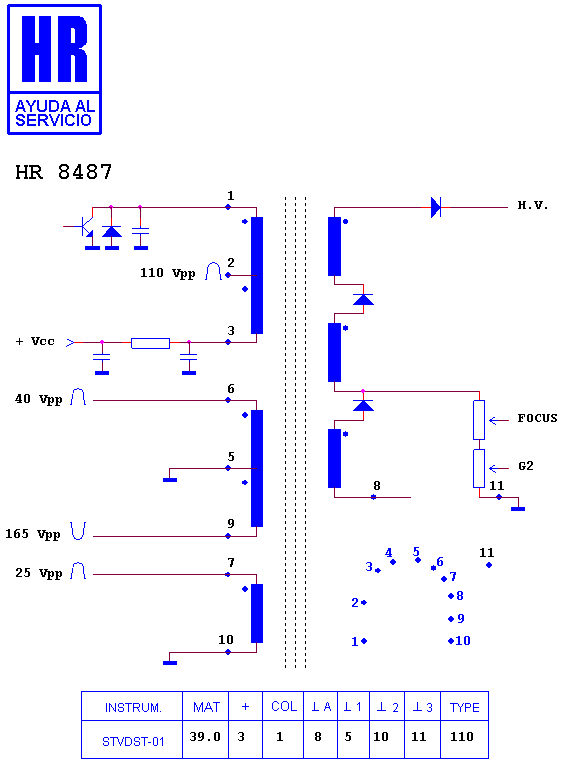

Schematic diagram for HR 8487
schematic (archived)

Manufacturer equivalents (4)

95-4438 · 95-4438-01 · 95-4438-02 · 95-4438-04

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8859 · HR 8184 · HR 8015 · HR 8305 · HR 7288 · HR 6643 · HR 6245 · HR 7733 · HR 6207 · HR 7240 · HR 6124 · HR 8117

Fitted to (6)

ZENITH A 36 B 43 W · ZENITH B 27 B 40 Z · ZENITH IQB 32 B 42 W · ZENITH IQB 36 B 42 W · ZENITH IQB 36 B 86 R · ZENITH SAR 3471 BT
