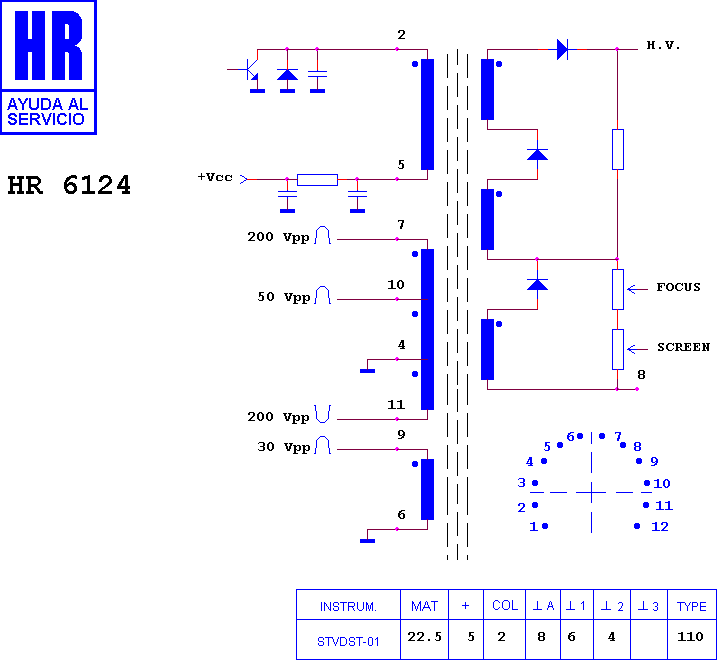

HR 6124

type ST · family 1BP1 · 22.5 kV maximum anode voltage · 110° deflection · 4 windings · 425 g

Manufacturer equivalents (12)

094-01027/0.0 · 094-01027/0.2 · 094-01052/0.8 · 1182.0317 · 37372.00 · 37372.01 · 94-01027/0.0 · 94-01052/0.8 · 94-1207/0.0 · FAT 30363 · HR 6124 · KN 30363

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6249 · HR 6368 · HR 6299 · HR 6102 · HR 6370 · HR 7399 · HR 8305 · HR 6238 · HR 7390 · HR 7346 · HR 7178 · HR 8117

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (9)

FISHER FTM C 65 TXT · FISHER FTMC 540 · SANYO CEP 2191 · SANYO CEP 2191 P · SANYO CEP 2193 F · SANYO CEP 2591 · SANYO CHASIS 097 · SANYO CHASIS EUROPA 110§ · SONITRON G 525
