HR 8305

type ST · family 1VP · 34.2 kV maximum anode voltage · 110° deflection · 4 windings · 410 g

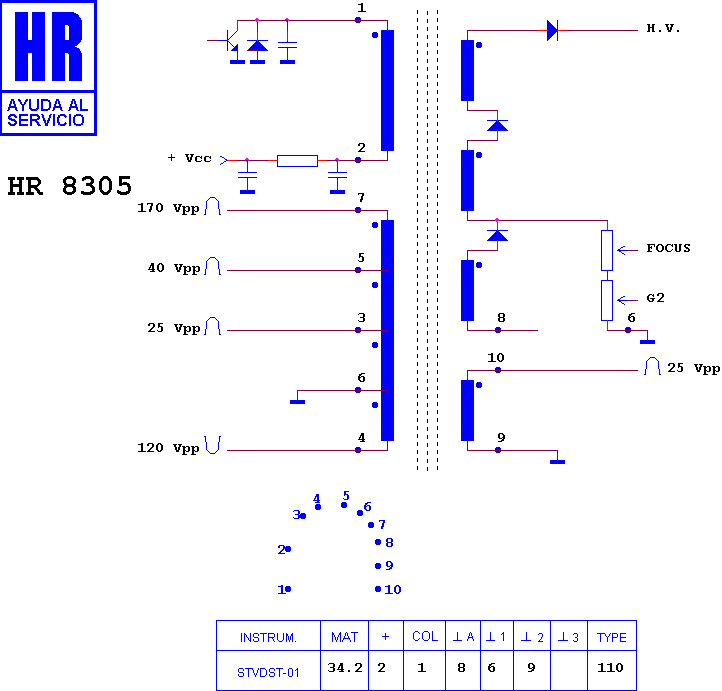

Schematic diagram for HR 8305
schematic

Manufacturer equivalents (5)

140 17064 · 3121 218 30121 · 3121 218 30122 · 4806 140 17064 · EIA232

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7420 · HR 8487 · HR 6643 · HR 7288 · HR 8859 · HR 6207 · HR 7733 · HR 6124 · HR 6245

Notes

THE SCREEN CABLE OF HR TRANSFORMER MUST BE SOLDERED DIRECTLY TO THE P.C. BOARD

Fitted to (4)

PHILIPS 29 GX 1898 · PHILIPS 29 GX 1899 · PHILIPS 29 GX 1999 · PHILIPS CHASIS GX
