HR 7431

type ST · family 1XP1 · 29.4 kV maximum anode voltage · 110° deflection · 3 windings · 290 g

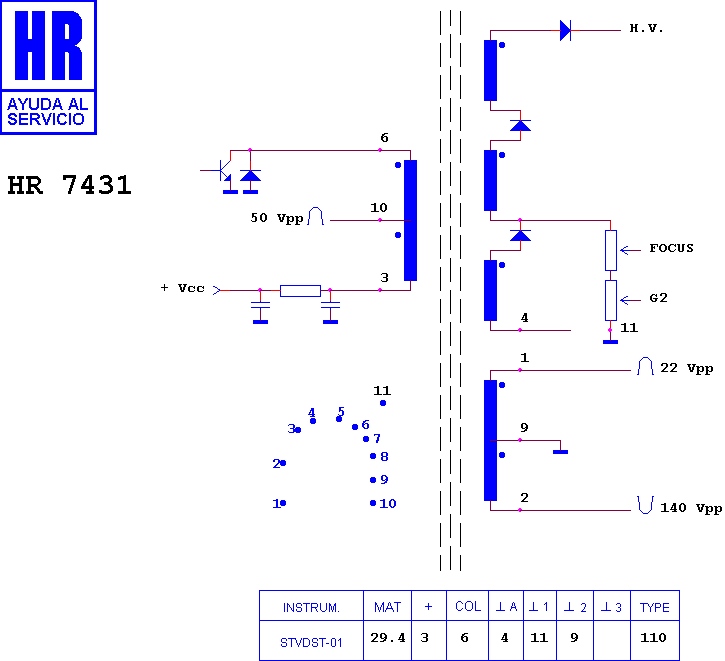

Schematic diagram for HR 7431
schematic

Manufacturer equivalents (3)

101-214004-03 · 101-214004-03 A · SP 114

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7980 · HR 7624 · HR 6587 · HR 8943 · HR 80141 · HR 80113 · HR 6534 · HR 8183 · HR 6161 · HR 6589 · HR 7516 · HR 7713
