HR 7544

type ST · family 1NP · 26.9 kV maximum anode voltage · 90° deflection · 2 windings · 264 g

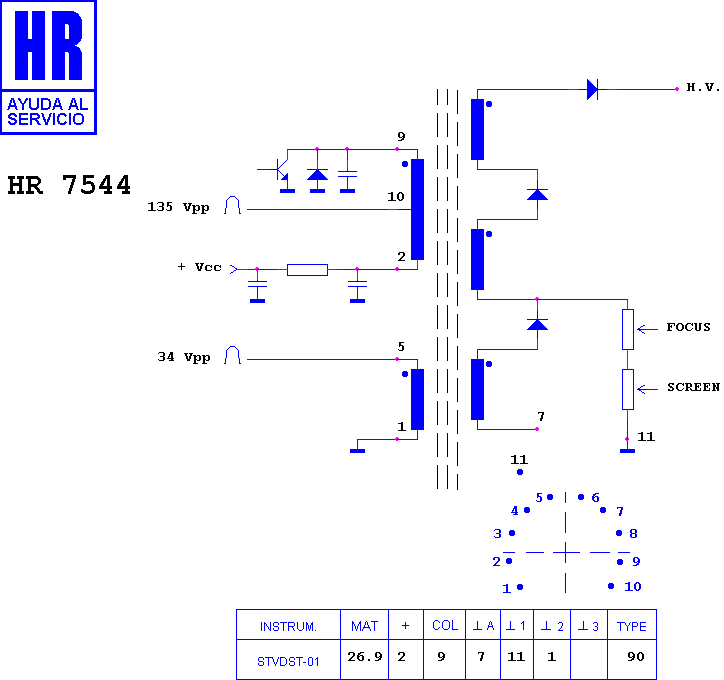

Schematic diagram for HR 7544
schematic

Manufacturer equivalents (1)

37.855

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7261 · HR 7210 · HR 7049 · HR 6454

Fitted to (5)

ELBE 14 EM 11 · ELBE BASICO 14" · ELBE CHASIS E 16 B · ELBE CHASIS E 16 E · ELBE CHASIS E 17
