HR 46180

type SM · family 1WD · 23.5 kV maximum anode voltage · L° deflection · 4 windings · 474 g

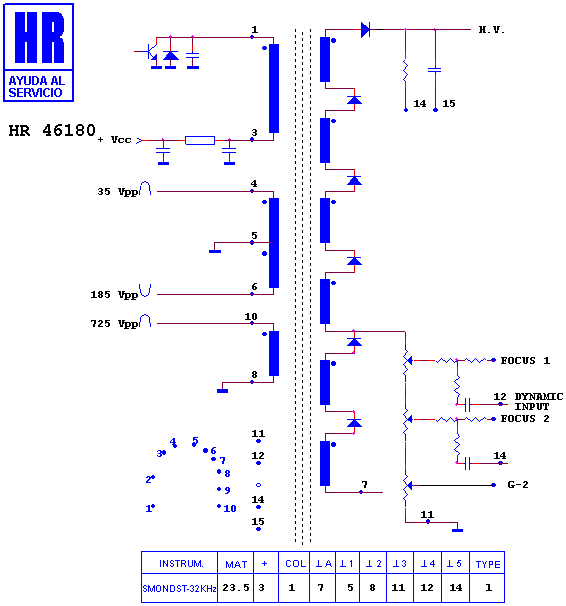

Schematic diagram for HR 46180
schematic

Manufacturer equivalents (5)

4030001920 · 403001920 · 6174 Z 1029 A · CF 1110 · LCE CF 1110

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8797 · HR 6540 · HR 46230 · HR 46213 · HR 46266

Notes

ALWAYS THE COLOUR CABLE COINCIDENT WITH THE ORIGINAL; MATCHES THE SAME COLOUR CABLE IN THE HR.

Fitted to (12)

FUNAI 1721 · FUNAI 1721 S · FUNAI MONITOR · KIBUTZ 1721 · KIBUTZ MONITOR · TUV 1721 ES · TUV MONITOR · VESTEL 1721 ES · VESTEL CHASIS 15 AK 15-9 · VESTEL MONITOR · VISA 1721 · VISA MONITOR
