HR 8155

3 windings

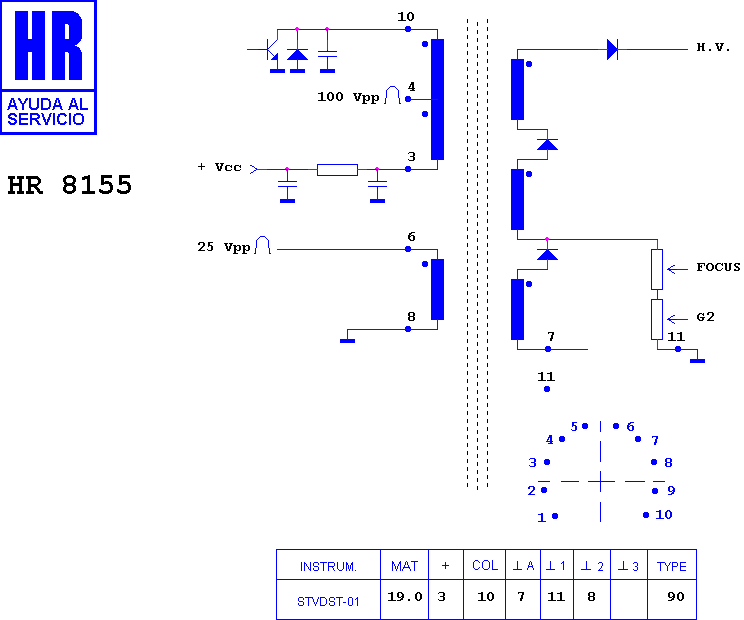

Schematic diagram for HR 8155
schematic

Manufacturer equivalents (1)

TVL 106

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8124 · HR 7630 · HR 8343 · HR 6694 · HR 7534 · HR 6274 · HR 7988 · HR 8099 · HR 8574 · HR 8335 · HR 8942 · HR 7046

Fitted to (1)

BIAZET TC 20 X
