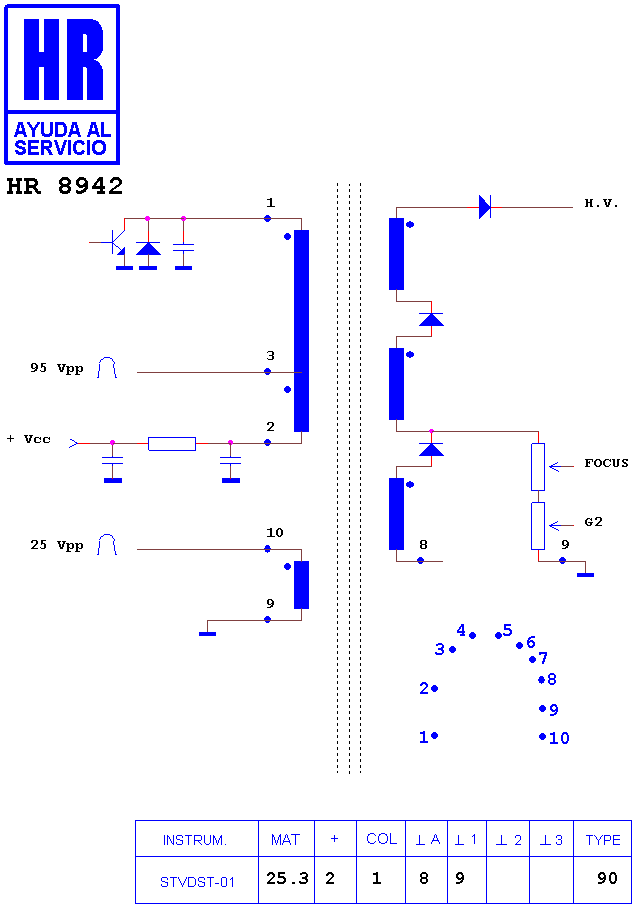

HR 8942

type ST · family 1YP · 25.3 kV maximum anode voltage · 90° deflection · 3 windings · 410 g

Manufacturer equivalents (1)

ZTFN 33005 A

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8124 · HR 8172 · HR 7630 · HR 8155 · HR 8099 · HR 8574 · HR 6274 · HR 7988 · HR 8896 · HR 7046 · HR 7116 · HR 7115

Fitted to (2)

PANASONIC - MATSUSHITA 20 A 12 · PANASONIC - MATSUSHITA TC 20 B 12
