HR 8172

type ST · family 1SP1 · 21 kV maximum anode voltage · 90° deflection · 3 windings · 342 g

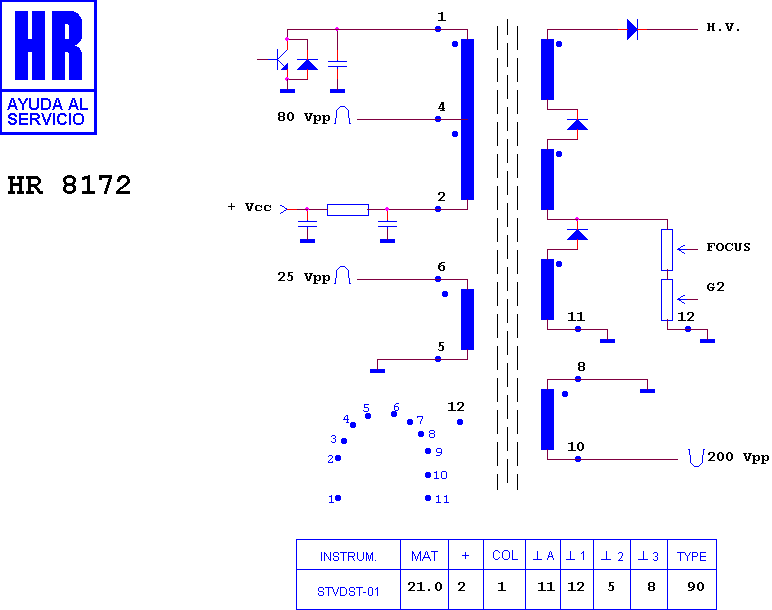

Schematic diagram for HR 8172
schematic

Manufacturer equivalents (9)

1-453-191-11 · 1-453-221-11 · 1-453-221-12 · 8-598-959-00 · 8-598-959-01 · 8-598-959-02 · NX 1740//U2A · NX 1740/U2B4 · NX1740/U2A4

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8942 · HR 8124 · HR 8896 · HR 7991 · HR 8558 · HR 8099 · HR 8574 · HR 7630 · HR 6274 · HR 8395 · HR 8155

Fitted to (4)

SONY CHASIS BE 5 · SONY KV 16 WS 1 E · SONY KV 16 WT 1 · SONY KV T 29 MN 11
