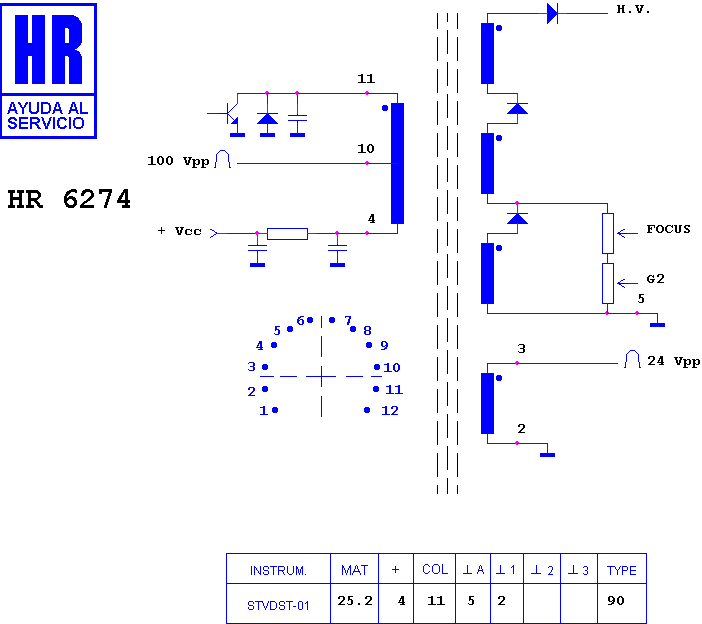

HR 6274

type ST · family 1BP · 25.2 kV maximum anode voltage · 90° deflection · 3 windings · 425 g

Manufacturer equivalents (1)

HR 6274-00

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7534 · HR 7630 · HR 8155 · HR 8942 · HR 7988 · HR 8124 · HR 7046 · HR 7116 · HR 8099 · HR 8574 · HR 8328 · HR 8896

Accessories (2)

Parts the catalogue lists alongside this one. They are separate items, not part of the transformer.

• HR 1660 — EHT anode lead
• HR 16524 — Focus control

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
