HR 7116

type ST · family 1NP1 · 22.4 kV maximum anode voltage · 90° deflection · 2 windings · 278 g

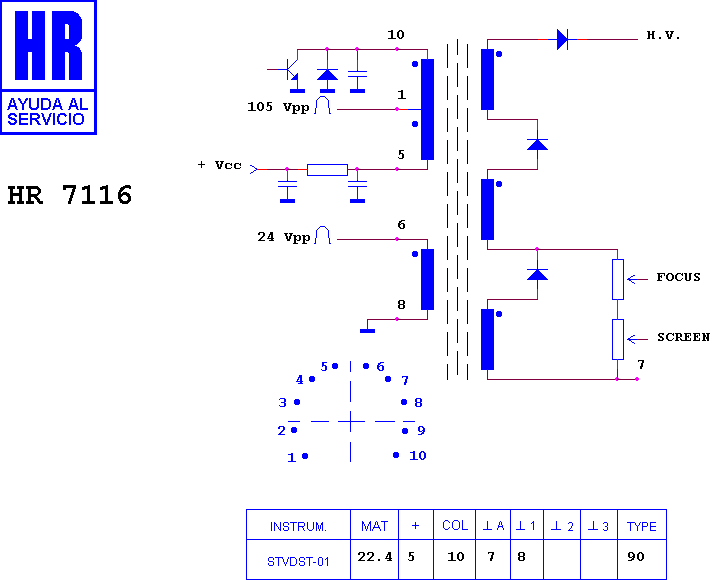

Schematic diagram for HR 7116
schematic

Manufacturer equivalents (3)

1105.0705 · ME/6023-00 · TDS 170

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7115 · HR 7046 · HR 7988 · HR 7534 · HR 6274 · HR 8124 · HR 7630 · HR 8328 · HR 8574 · HR 8942 · HR 8896 · HR 7228

Fitted to (5)

MAGNAFON 14" · MAGNAFON 21" 90§ · MAGNAFON JOLLY 14 16 CANALI · MAGNAFON SYSTEM 21" · MAGNAFON TVC 90§ 12
